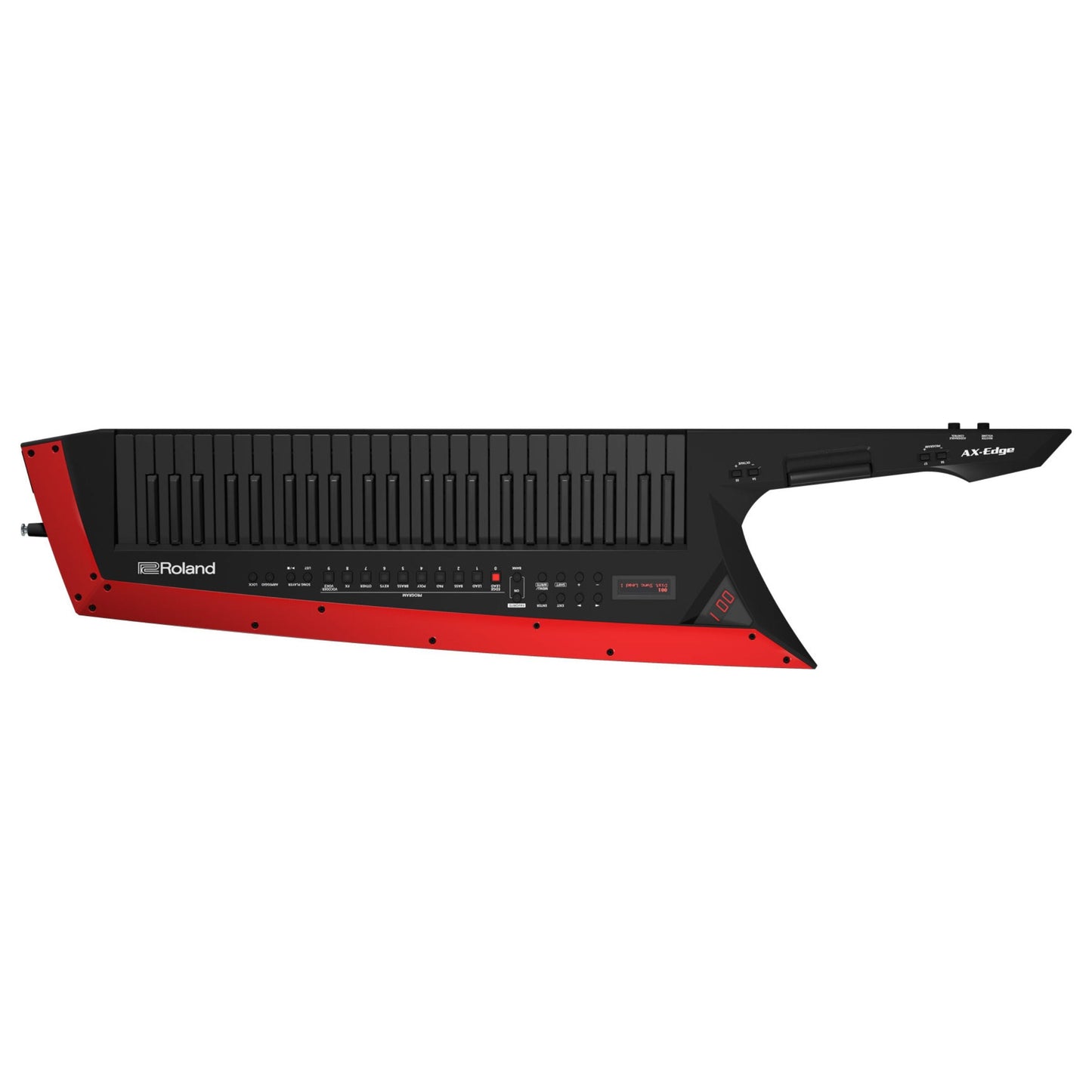

AX-Edge Keytar

Step into the Spotlight

Today's audiences crave dynamic performances that stand out. As an artist, you want to connect with your fans and take your moment in the spotlight. The AX-Edge builds on decades of refinement and learning from artists the world over about what makes the ultimate performance synthesizer. The AX-Edge has a sleek, modern design with a customizable look via interchangeable Edge Blades, 49 full-sized keys, and a sound set crafted specifically for keytarists. And throughout the AX-Edge, you'll find thoughtful design features that give you the freedom and confidence to truly express yourself on stage.

FEATURES

• 49 full-sized keys with velocity and channel aftertouch
• 4 parts + vocoder with mic Input
• 320 programs and over 500 preset tones for keytarists
• 79 types of part multi-effects and part EQ, 79 types of program multi-effects, chorus, reverb, master compressor, and master EQ
• Tone Remain function switches sounds seamlessly without unnatural sound cutoff
• Ribbon controller, modulation bar, and assignable controls for expressive performance
• Up to 4 hours of battery-powered* operation; can also be powered via AC adapter
  *Rechargeable Ni-MH batteries only.
• Bluetooth MIDI and editor app for wireless sound customization
• Weighs just 9 lb. 5 oz./4.2 kg (without batteries)
• Available in black and white models with removable Edge Blade for custom look
• One extra Edge Blade included to complement your AX-Edge model
• Audio file playback via external USB memory
• Master MIDI controller functionality for remote operation of sound modules, plug-ins, and more

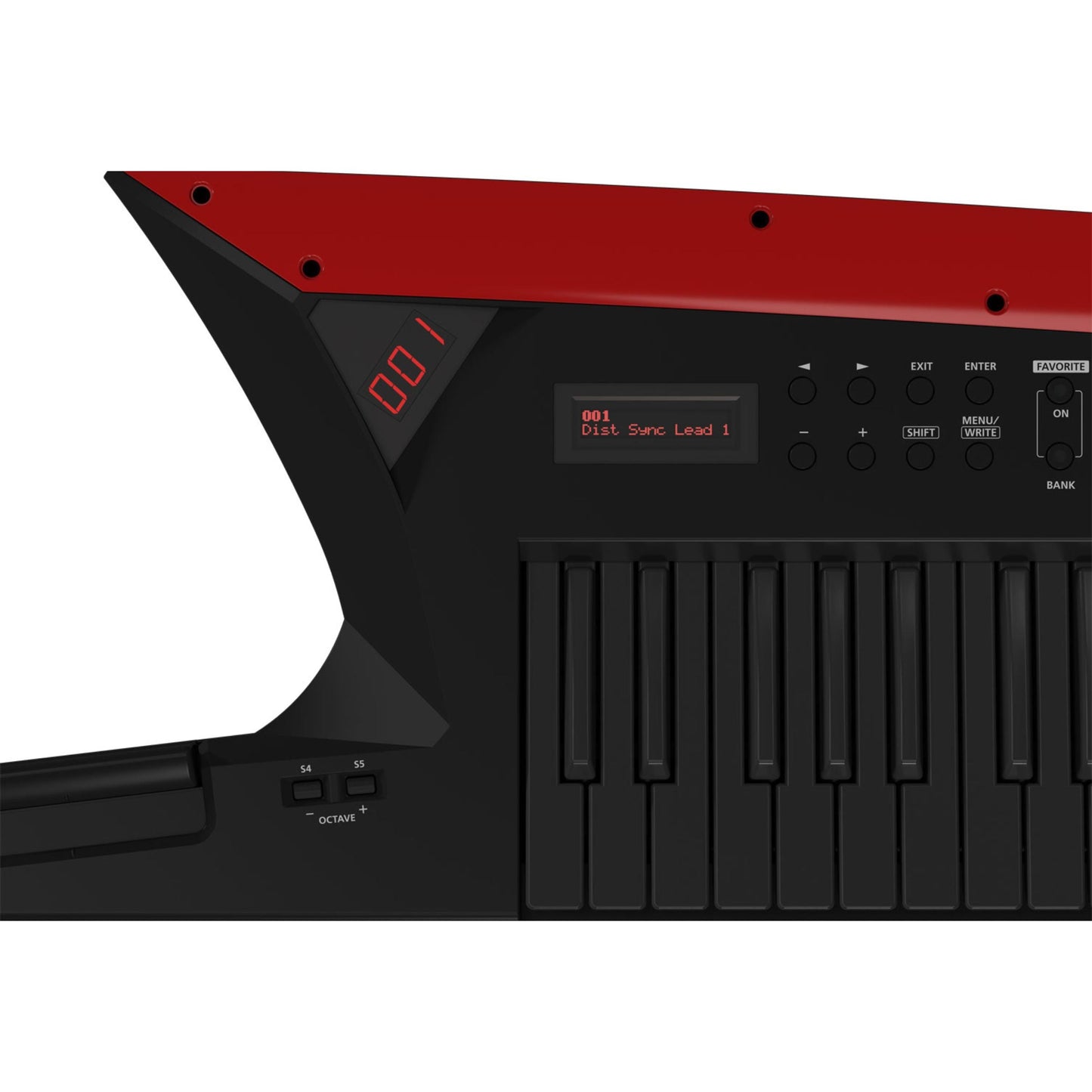

• Dual display system optimized for live performance

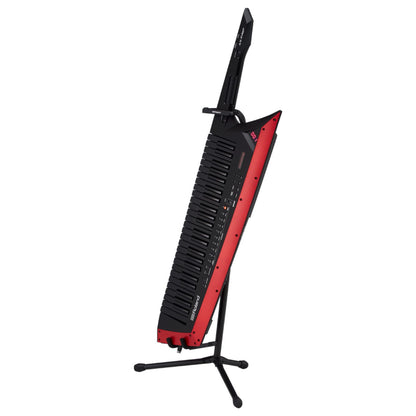

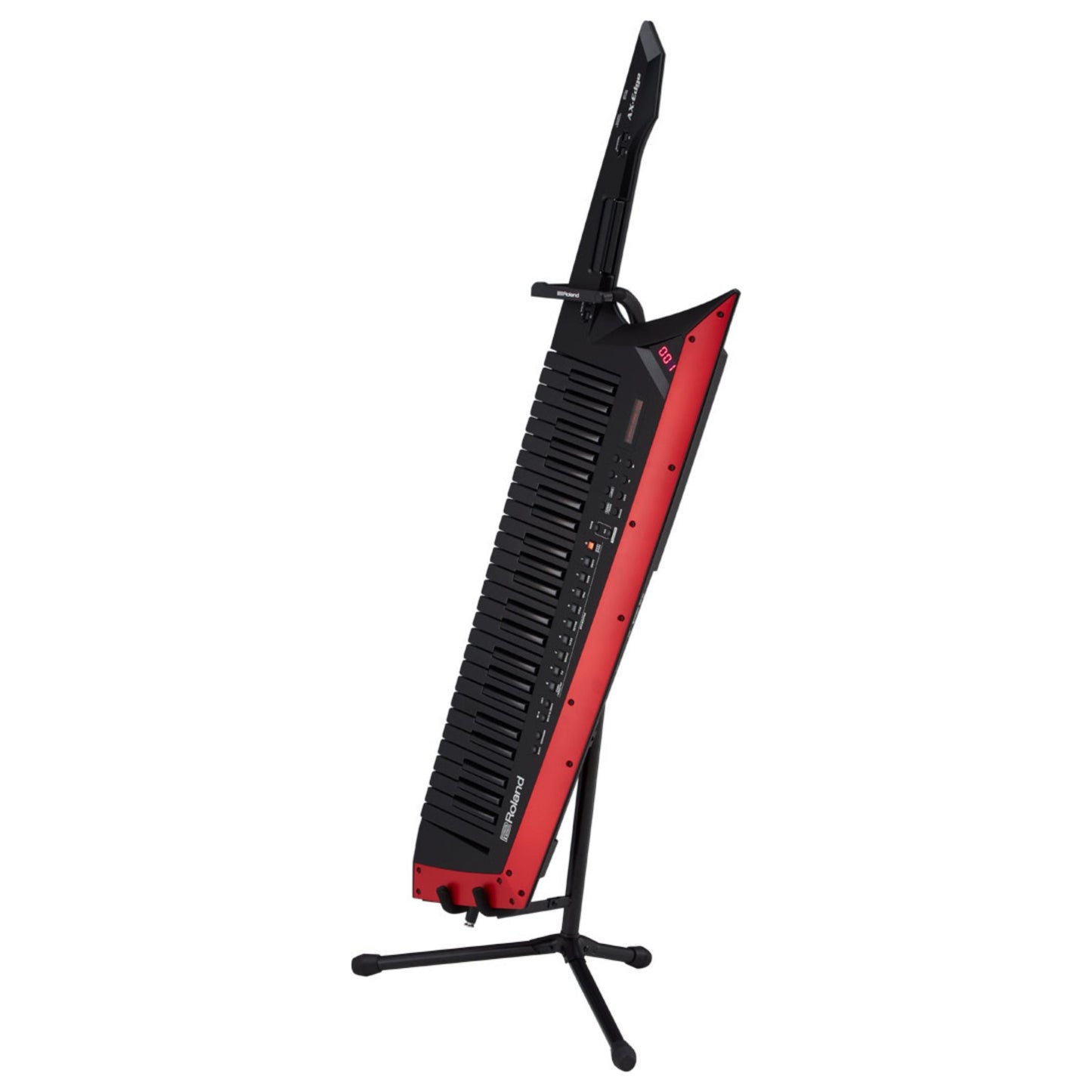

• Optional ST-AX2 stand provides stable support when the instrument is not in use

KEYBOARD

• 49 keys (with velocity and channel aftertouch)

SOUND GENERATOR

• ZEN-Core

PARTS

• 4 parts + Vocoder part

TONES

• User Program: 320
• Preset Tone: Over 500
• User Tone: 256

EFFECTS

• Part Multi-effects: 90 types
• Part EQ
• Vocoder
• Program Multi-effects (IFX): 90 types
• Chorus: 9 types
• Reverb: 7 types
• Master Compressor
• Master EQ

OTHER FUNCTIONS

• Favorite
• Song Player
• Arpeggio
• Vocoder
• MIDI Master Keyboard
• Sound Edit
  * You can use the smartphone AX-Edge Editor app (Android version/iOS version) to edit the AX-Edge's sounds.

CONTROLLERS

• Ribbon Controller
• Modulation Bar
• Assignable Control knob
• Master Volume knob

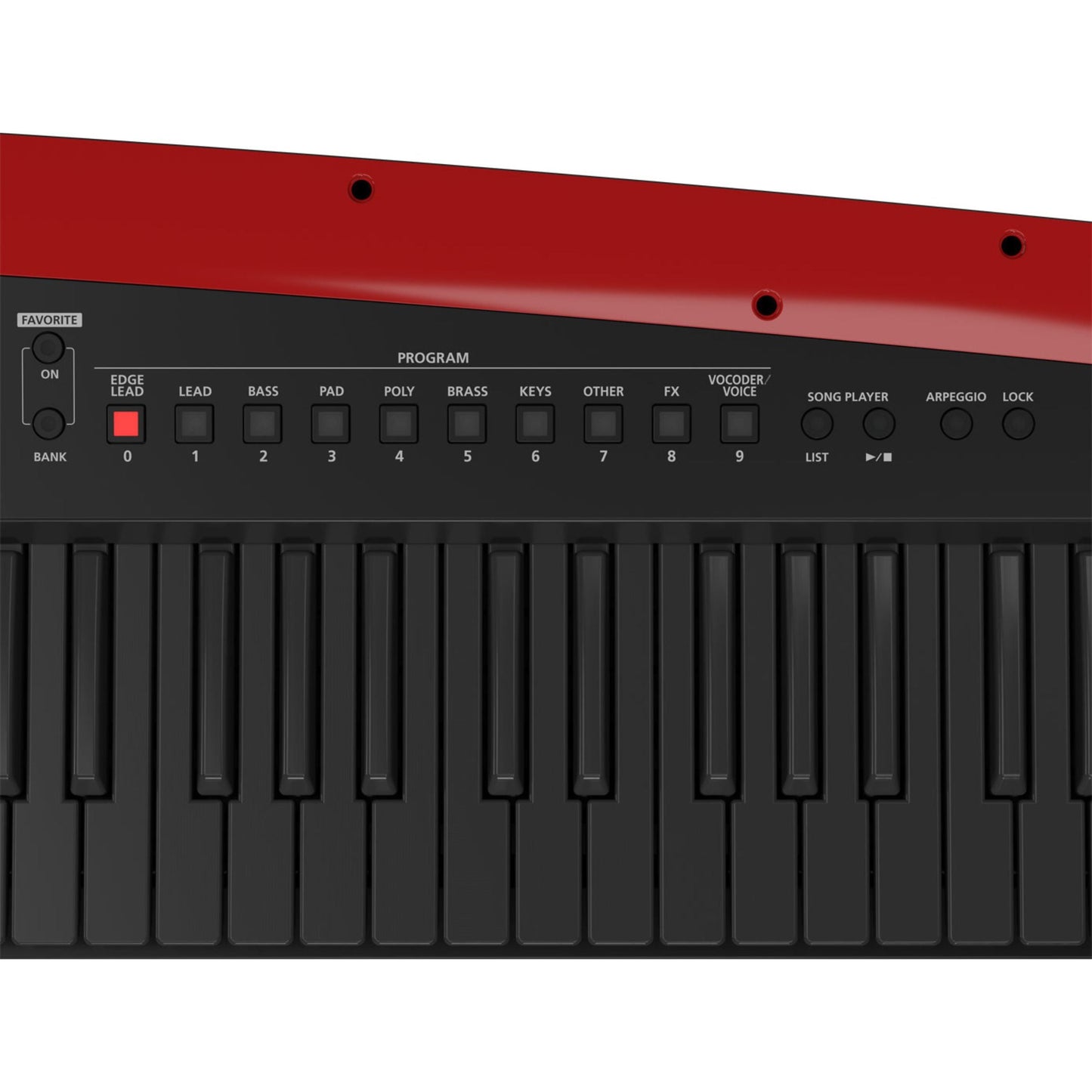

• Assignable buttons x 7
• Pedal
• Aftertouch

BLUETOOTH

• MIDI: Bluetooth Ver. 4.1 (Bluetooth LE)

DISPLAY

• 16 characters 2 line LCD
• (3 x 7) segment LED

EXTERNAL STORAGE DEVICE

• USB flash drive

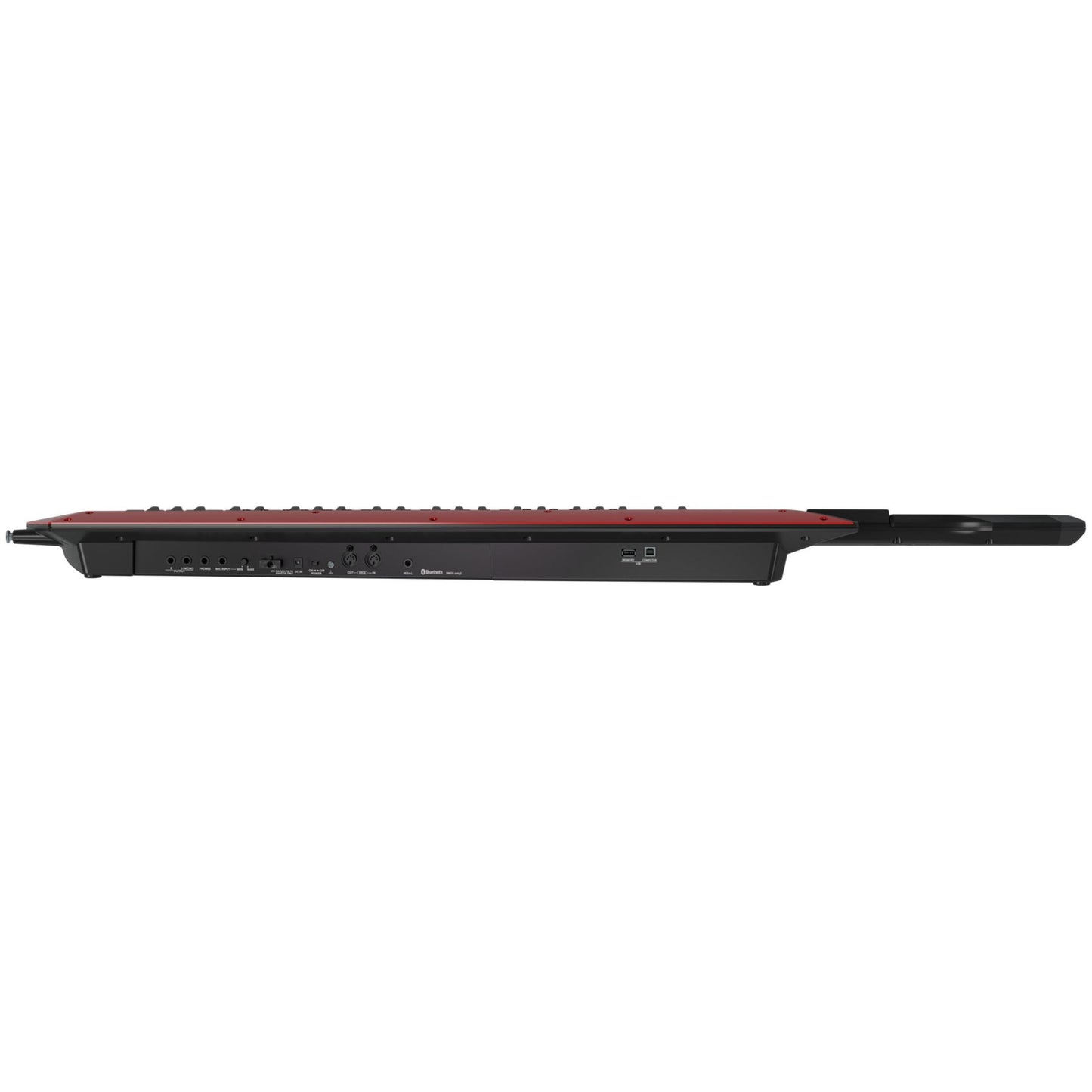

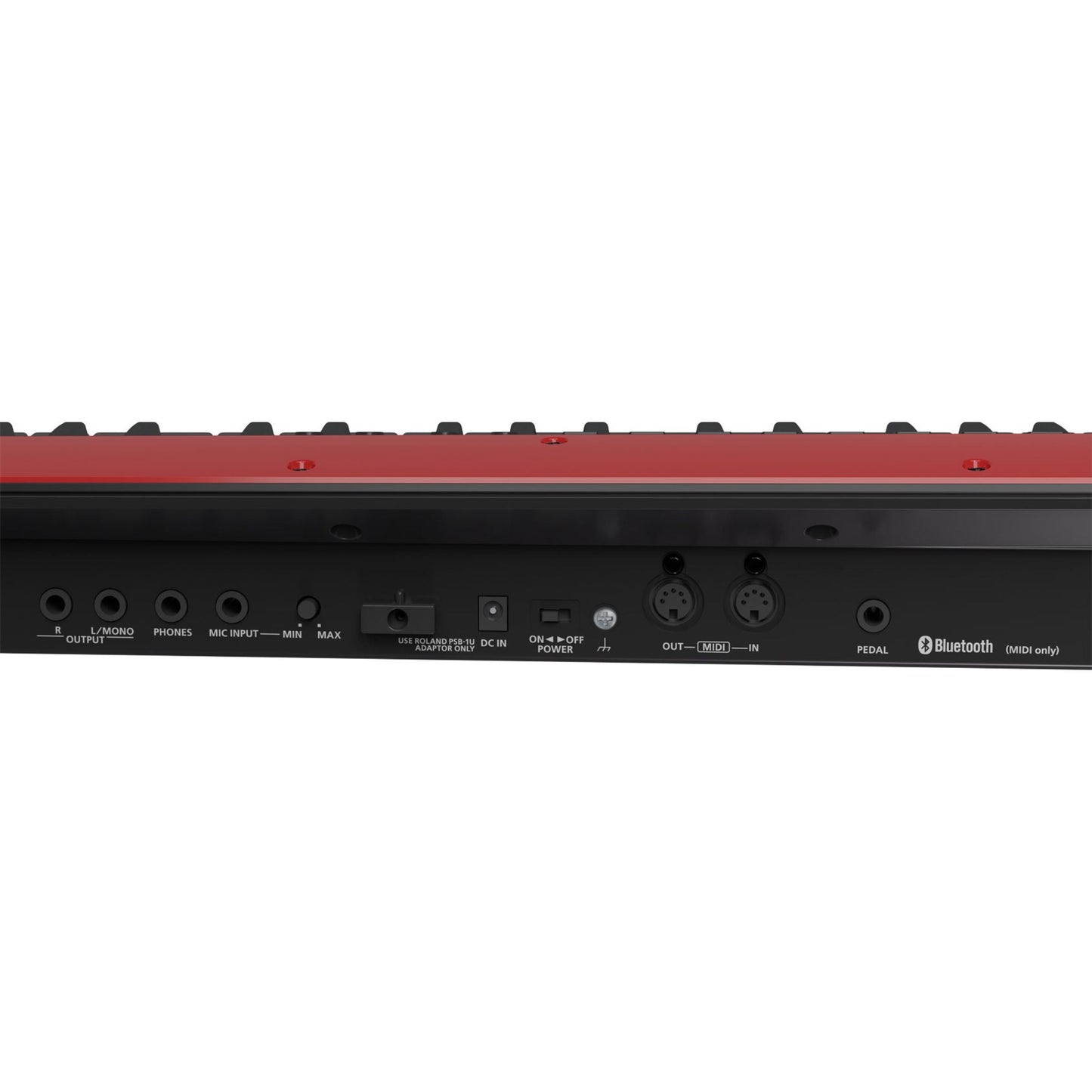

CONNECTORS

• PHONES jack: stereo 1/4-inch phone type
• OUTPUT jacks (L/MONO, R): 1/4-inch phone type
• MIC INPUT jack: 1/4-inch phone type
• PEDAL jack
• MIDI connectors (IN, OUT)
• USB MEMORY port
• USB COMPUTER port (supports USB MIDI)
• DC IN jack

POWER SUPPLY

• DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8

CURRENT DRAW

• 1,000 mA
  * Battery life for continuous use (differs depending on the conditions of use)
• Rechargeable nickel metal hydride batteries: approximately 4 hours
  * Carbon-zinc or alkaline batteries cannot be used

ACCESSORIES

• Owner's manual
• Leaflet "USING THE UNIT SAFELY"
• AC adaptor
• Power cord

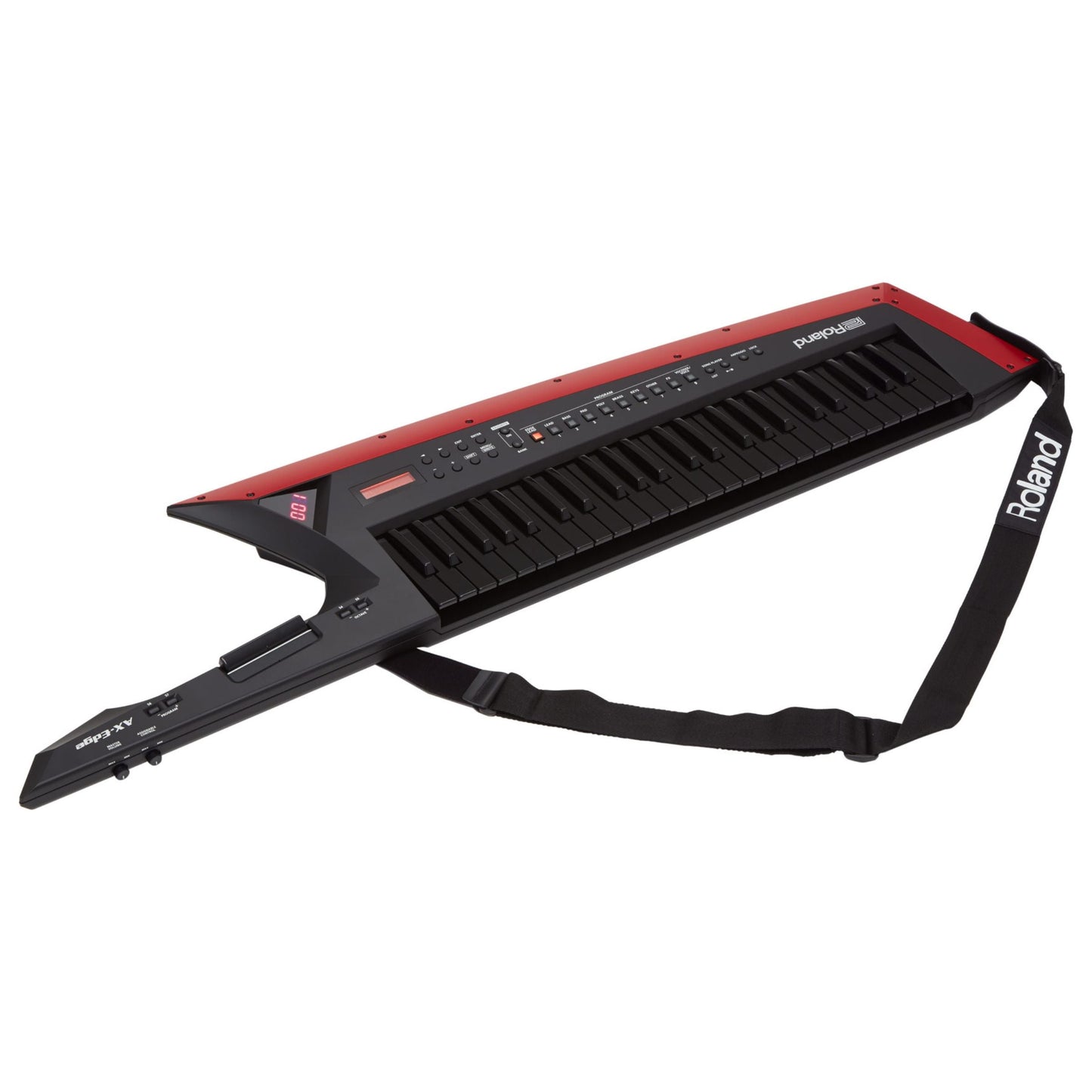

• Strap
• Blade panel (including Hex key, screws)
• Ferrite core (including Band for fastening the core)

OPTIONS (SOLD SEPARATELY)

• AX-Edge stand (ST-AX2)
• Pedal switch: DP series
• Expression pedal: EV-5

SIZE AND WEIGHT

• Width: 1,252 mm | 49-5/16 inches
• Depth: 291 mm | 11-1/2 inches
• Height: 85 mm | 3-3/8 inches
• Weight (excluding AC adaptor, Batteries): 4.2 kg | 9 lbs. 5 oz.
