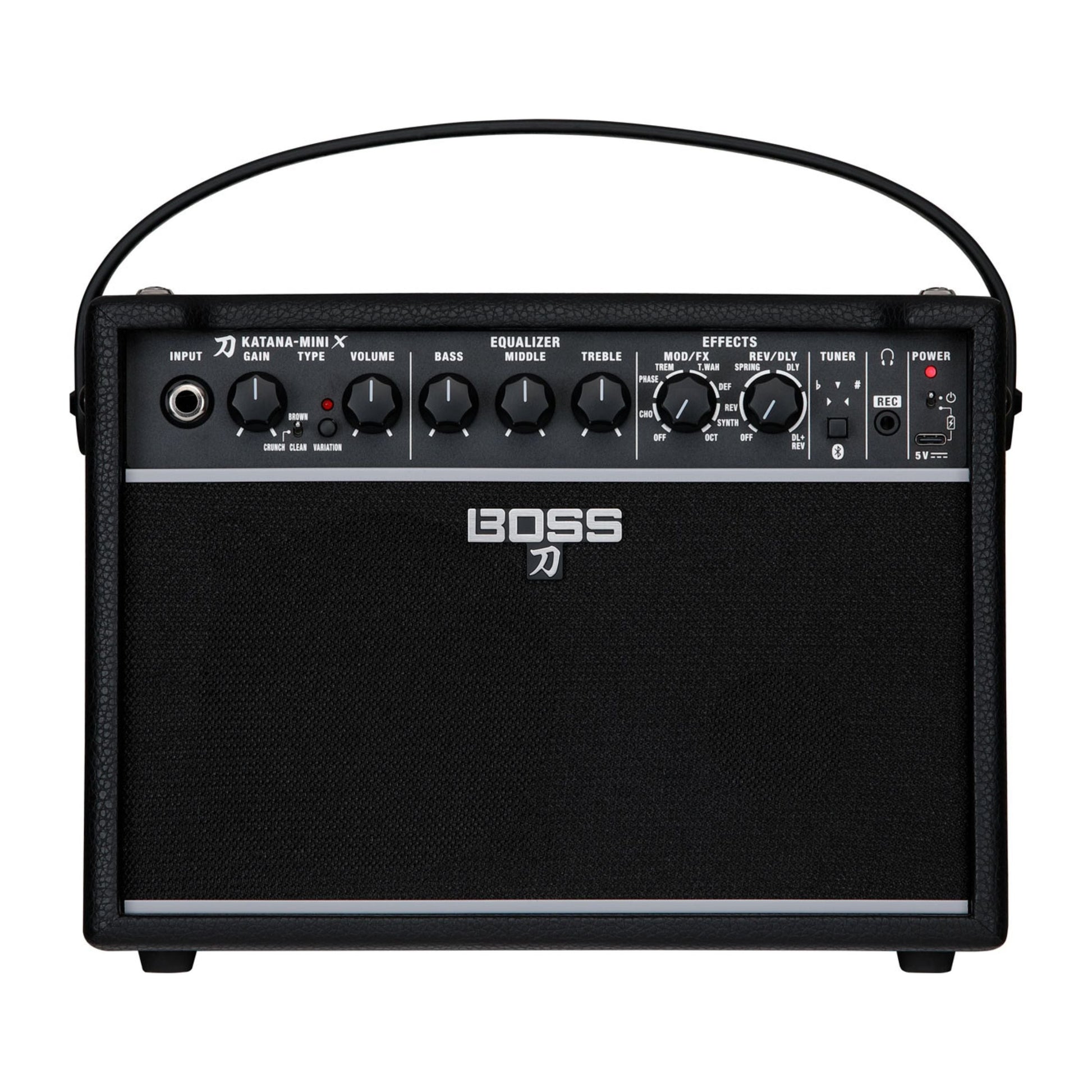

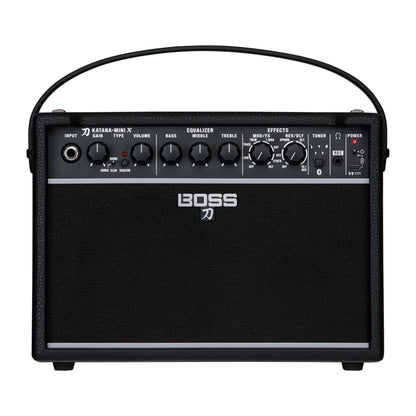

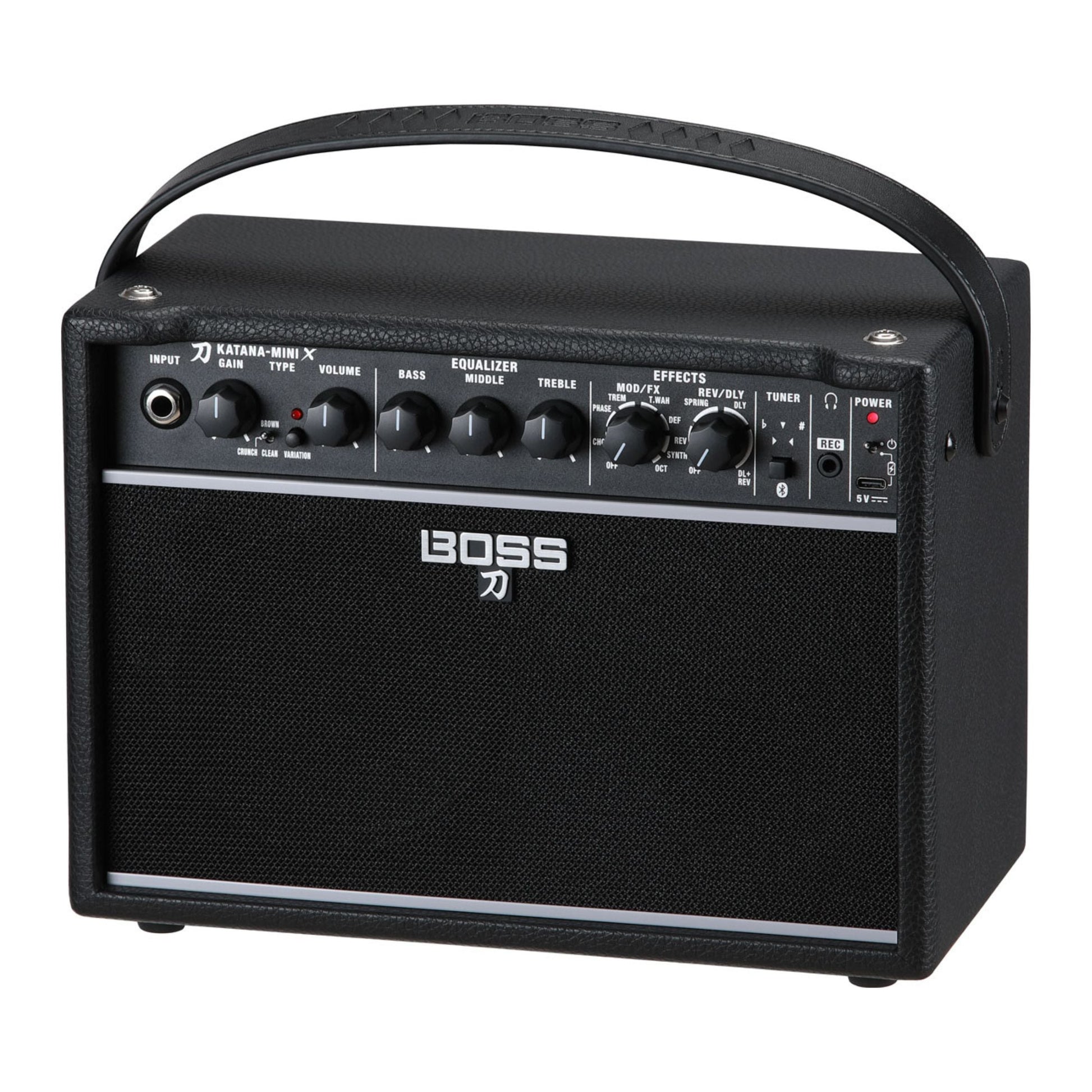

Katana-Mini X Guitar Amplifier

Inspiring Quality, Minimal Design

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.

FEATURES

• Inspiring Katana tone in a 10-watt mini amp
• Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
• Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
• Three versatile amp types: Brown, Crunch, and Clean
• Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
• Three-band analog tone stack for smooth sound adjustment
• Two independent effect sections with 10 total effect types to choose from
• Intuitive panel with front-facing controls
• Guitar/bass tuner with panel indicators
• Wirelessly stream audio from a mobile device via onboard Bluetooth
• Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
• Rechargeable battery with up to 10 hours of continuous playing time*
• USB-C® jack for charging (USB Type-C to Type-A charging cable included)

  *Actual battery life will vary depending on the usage conditions.



SPECIFICATIONS

Rated Power Output

• 10 W

Speaker

• 12 cm (5 inches)

Connectors

• INPUT jack: 1/4-inch phone type
• PHONES/REC jack: Stereo miniature phone type
• 5 V (DC IN) port: USB Type-C(R)

Size and Weight

• Width: 287 mm | 11-5/16 inches
• Depth: 145 mm | 5-3/4 inches
• Height: 200 mm | 7-7/8 inches
• Weight (including strap): 2.7 kg | 6 lbs
