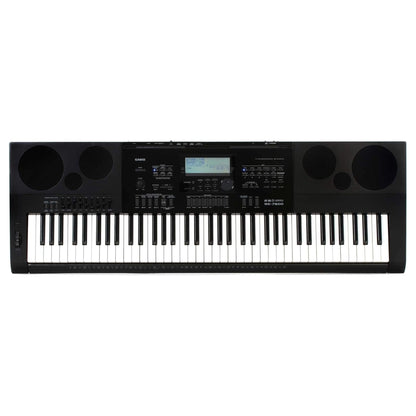

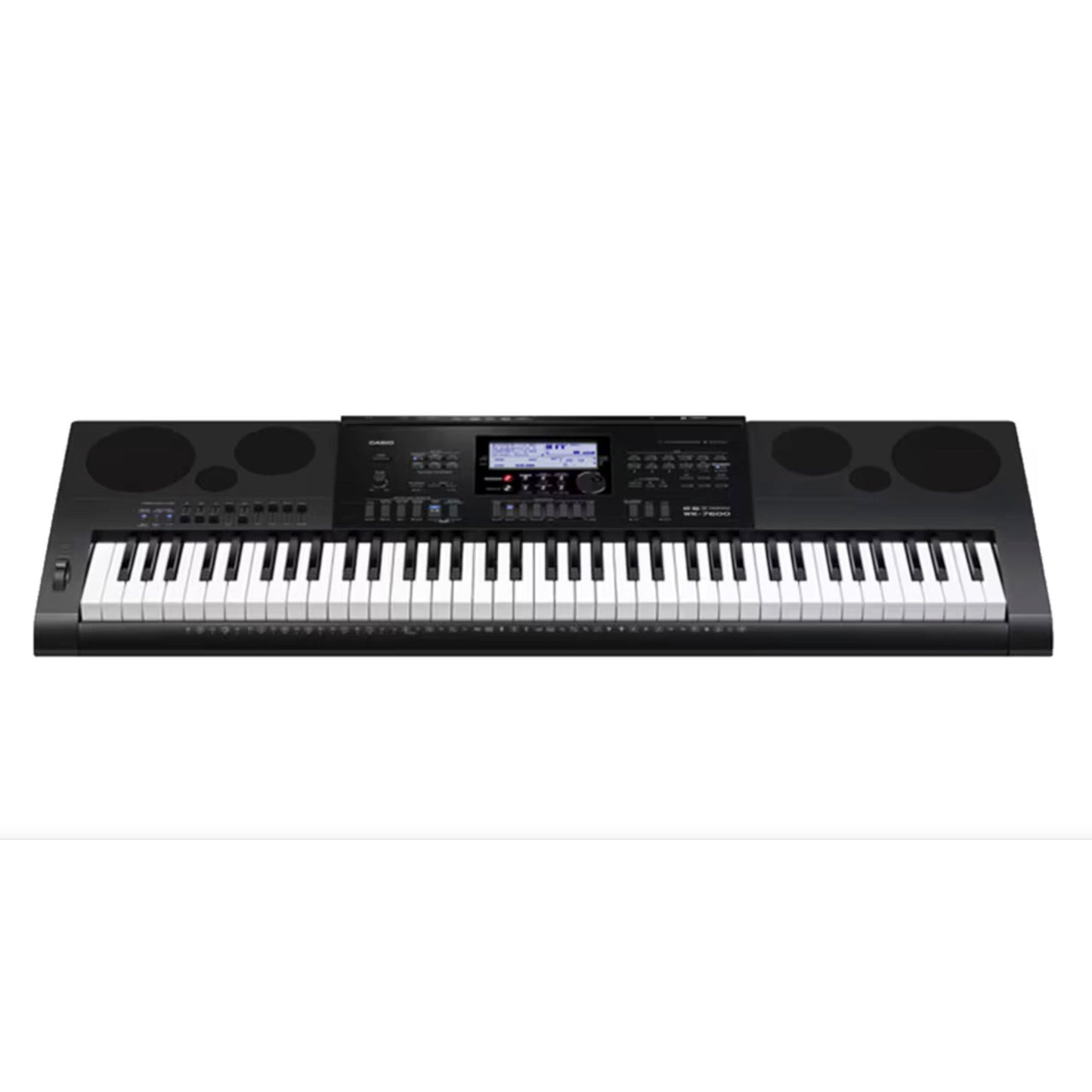

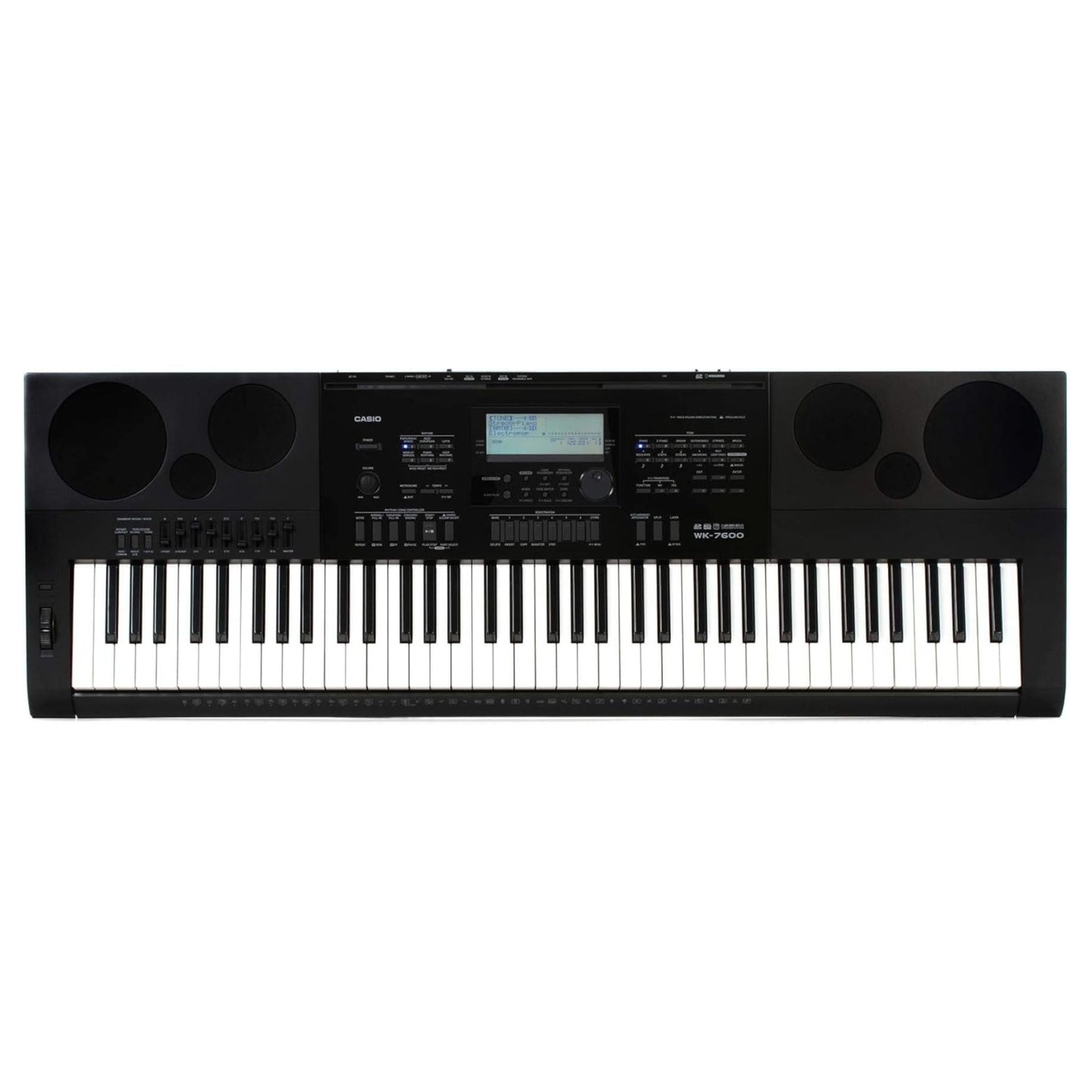

WK-7600 Workstation Keyboard

Whether you are an amateur or professional musician, the Casio WK-7600 76-key Workstation will allow you to create, edit and play your compositions at home, in the studio or on the stage: 100 DSP effects and users can store up to 100 customized DSP variations, activate 150 different types of arpeggiator at the touch of a button, create and save 10 personal user rhythms and store settings quickly and easily using the 32 registration memories.

FEATURES

• piano-style touch-response keyboard
• song sequencer
• tone editor
• multiple digital effects
• mixer, performance registration memory
• USB MIDI interface
• SD card storage

• hundreds of editable tones



NUMBER OF KEYS
76

TOUCH RESPONSE
2 sensitivity levels, off

SOUND SOURCE
AHL (Tri-element)

MAXIMUM POLYPHONY
64

NUMBER OF TONES
820

NUMBER OF RHYTHMS/PATTERNS
260

AUTOMATIC ACCOMPANIMENT
Yes

DEMONSTRATION SONGS
5

RECORDER
[Song Sequencer] 17 tracks (System track + 16 multi tracks), 5 songs Approximately 30,000 notes (5 songs total) Real-time recording, Step recording, Song edit, Track edit, Event edit, Punch-in/out [Audio Recorder] 20 Audio files Approximately 13 min / file

SPEAKER
12cm x 2 + 3cm x 2

AMPLIFIERS
7W + 7W

POWER SUPPLY
2-way [Batteries] D-size alkaline batteries x 6 Approximately 4 hours [AC Adaptor] AD-A12150LW (DC 12V)

POWER CONSUMPTION
18W

DIMENSIONS
1,161 x 384 x 147 mm (w/o music stand)

WEIGHT
8.3 kg

INCLUDED ACCESSORIES
AC adaptor (AD-A12150LW), Music stand

EFFECTS
Reverb (10 types)
Chorus (5 types)
DSP (100 types)
User DSP (100 types)
EQ (5 types)

LAYER/SPLIT
Yes

OCTAVE SHIFT
-2 octaves ~ 0 ~ +2 octaves

TRANSPOSE
-12 semitones ~ 0 ~ +12 semitones

TUNING CONTROL
A4 = 415.5 Hz ~ 440.0 Hz ~ 465.9 Hz

SCALES
Equal temperament + 16 variations, Fine Tune

ARPEGGIATOR
150 types

MUSIC PRESETS
305 presets

REGISTRATION
96 setups (6 setups x 16 banks)

ONE TOUCH PRESETS
Yes

AUTO HARMONIZE
12 types

MIXER
32 channels

METRONOME
0, 2, 3, 4, 5, 6 beats; tempo range: 30 to 255

LCD
LCD with backlight

PITCH BEND WHEEL
Yes

MODULATION
Yes

LINE OUT
2 (L / MONO, R), Standard jack

USB PORT
Type B

AUDIO IN
Stereo mini jack

MIC IN
Standard jack

PEDAL
Sustain/Assignable：Standard jack (sustain, sostenuto, soft, rhythm)

PHONES/OUTPUT
Stereo standard jack

MIDI
Yes (Using the USB port): GM level 1 compatible
