Roland
Cube Street
Cube Street
The Ultimate Amp for Traveling Musicians
If you’re a musician who’s on the move, the new CUBE Street is for you. Whether you’re running to a rehearsal, lesson, street gig, or any situation that requires portability and versatility, the CUBE Street is a battery-powered marvel that’s ready to travel fast. The CUBE Street sounds amazing and is capable of high-volume output thanks to dual digital power amps and a pair of high-performance speakers. And just wait until you hear the built-in effects and amp models!
FEATURES
- Compact, lightweight stereo amplifier with slanted cabinet design
- Two high-performance 6.5” neodymium speakers
- Battery driven (6 x AA, maximum 15-hour continuous use)
- Dual-channel architecture with Guitar/Inst and Mic/Line inputs
- 8 COSM AMPs, 6 digital effects, and chromatic tuner built in
- 2-band EQ, Delay/Reverb for the Mic/Line-channel
- AC Adaptor included
SPECIFICATIONS
RATED POWER OUTPUT
2.5 W + 2.5 W
NOMINAL INPUT LEVEL (1 KHZ)
MIC/LINE Channel: -50 / -10 dBu
GUITAR/INSTRUMENT Channel: -10 dBu
STEREO AUX IN: -10 dBu
SPEAKERS
16 cm (6.5 inches) x 2

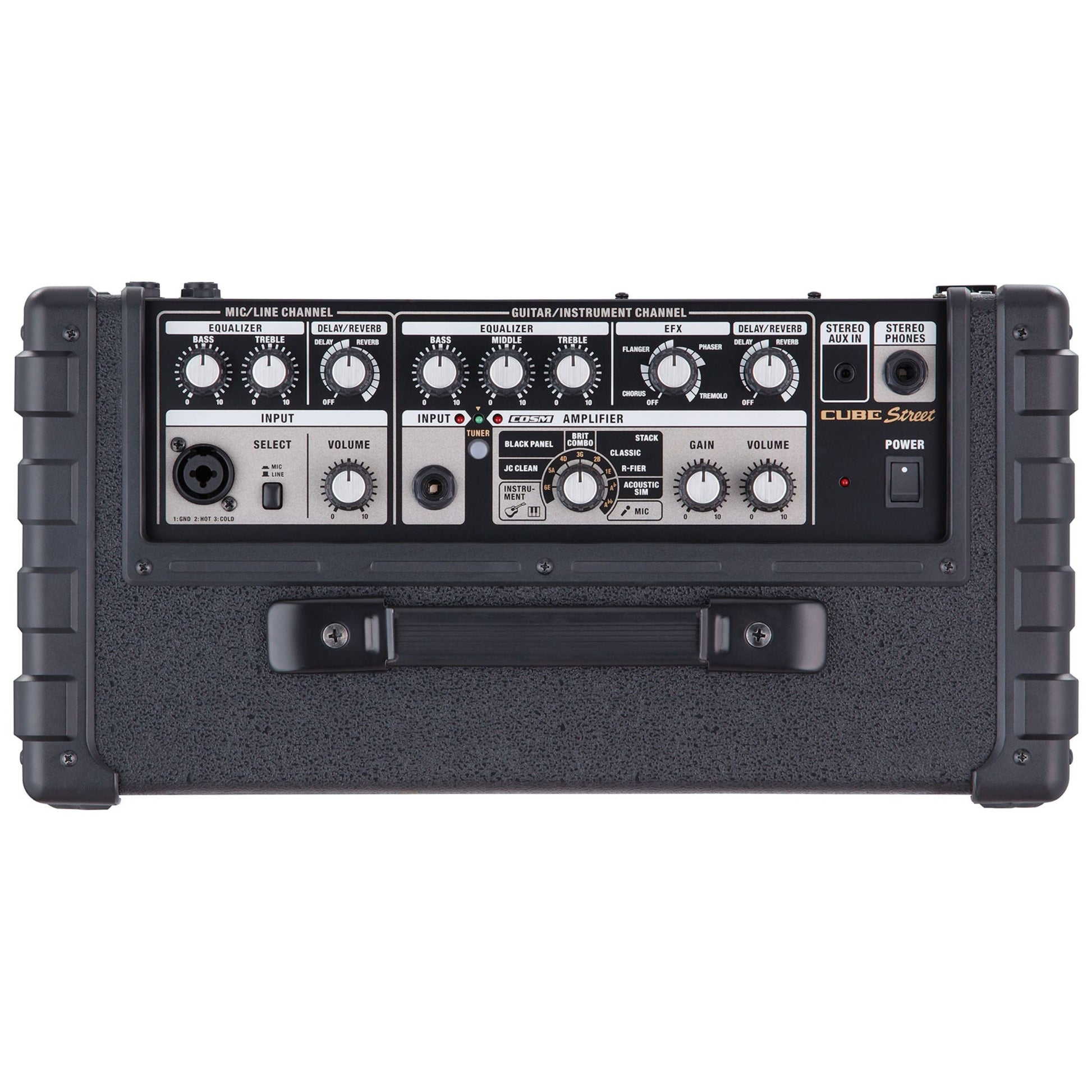

CONTROLS
POWER Switch
(MIC/LINE Channel)
SELECT Switch (MIC/LINE), VOLUME Knob, EQUALIZER Knobs (BASS, TREBLE), DELAY/REVERB Knob
(GUITAR/INSTRUMENT Channel)
TUNER Switch, TYPE Switch, GAIN Knob, VOLUME Knob, EQUALIZER Knobs (BASS, MIDDLE, TREBLE), EFX Knob, DELAY/REVERB Knob
INDICATORS
Tuner
Power
CONNECTORS
(MIC/LINE Channel)
Input Jacks (XLR type, 1/4" phone type), Foot Switch Jack (1/4" TRS phone type)
(GUITAR/INSTRUMENT Channel)
Input Jack (1/4" phone type), Foot Switch Jack (1/4" TRS phone type)
STEREO AUX IN Jack (Stereo miniature phone type), PHONES Jack (Stereo 1/4" phone type), AC Adaptor Jack
POWER SUPPLY
DC 9 V: AC Adaptor or Dry Battery (LR6 (AA) type)(optional) x 6
CURRENT DRAW
235 mA
ACCESSORIES
Power Cord
AC Adaptor (PSB-1U + AC Cord Set)
Owner's Manual
SIZE AND WEIGHT
Width - 415 mm | 16-3/8 inches
Depth - 295 mm | 11-5/8 inches
Height - 250 mm | 9-7/8 inches
Weight - 5.9 kg | 13 lbs. 1 oz.
