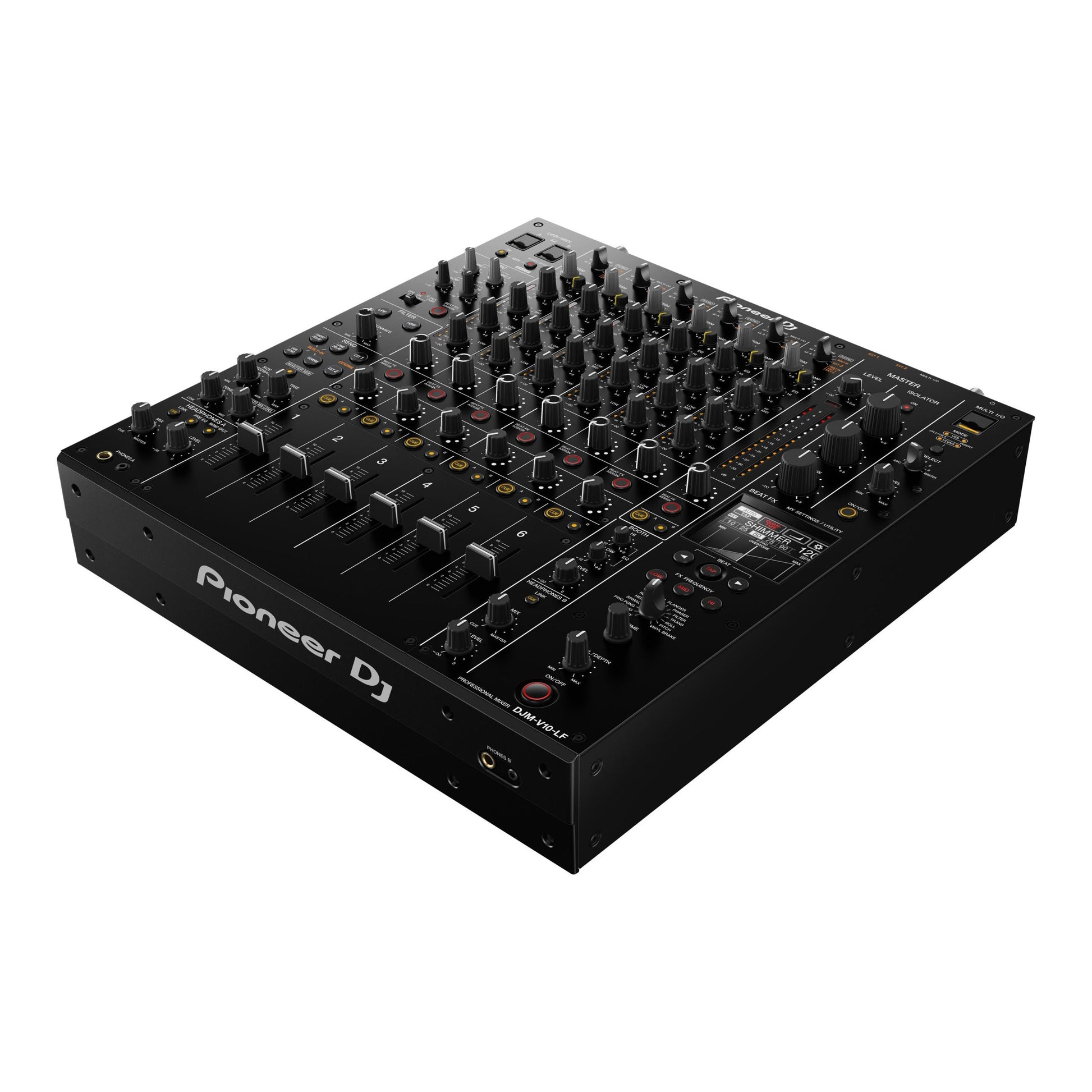

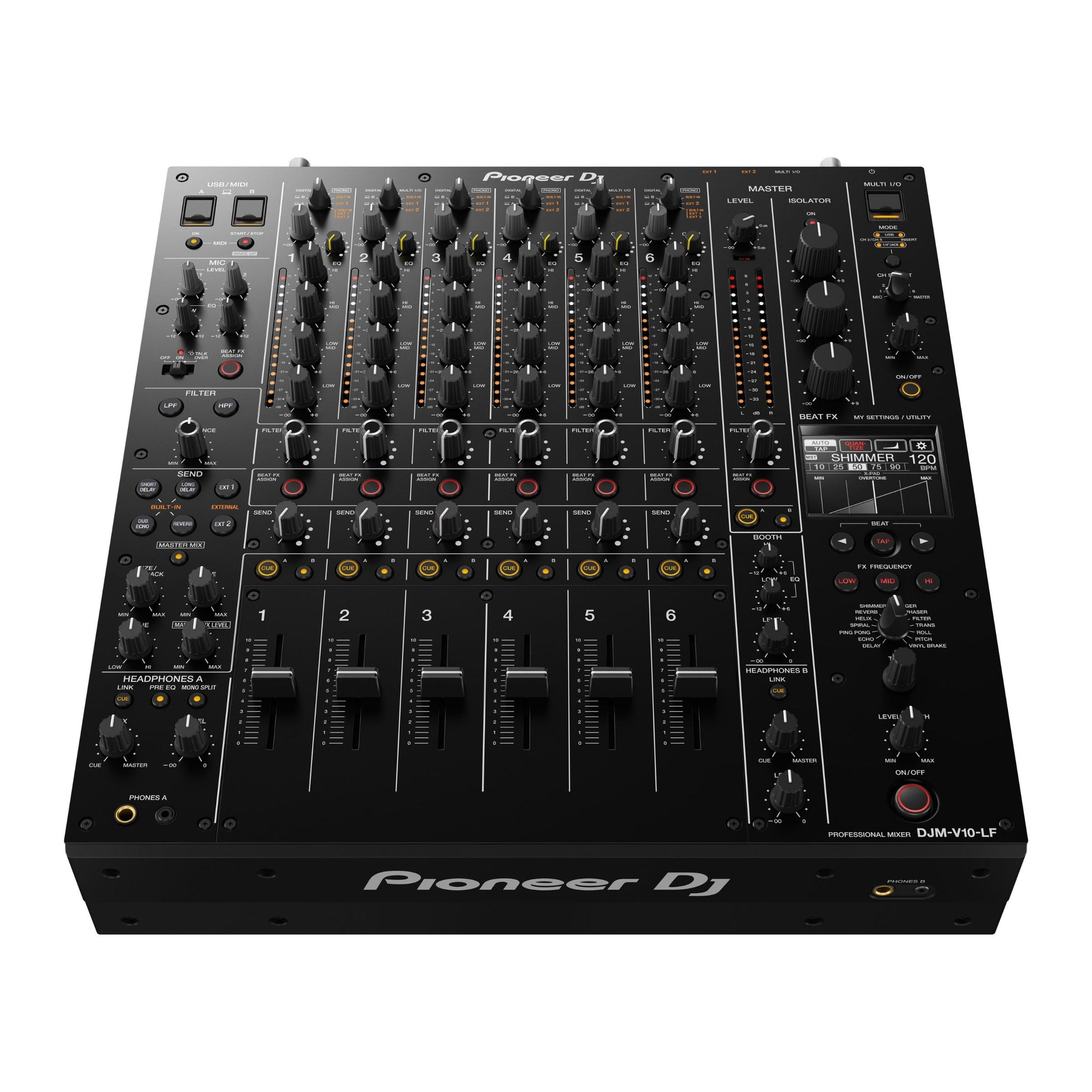

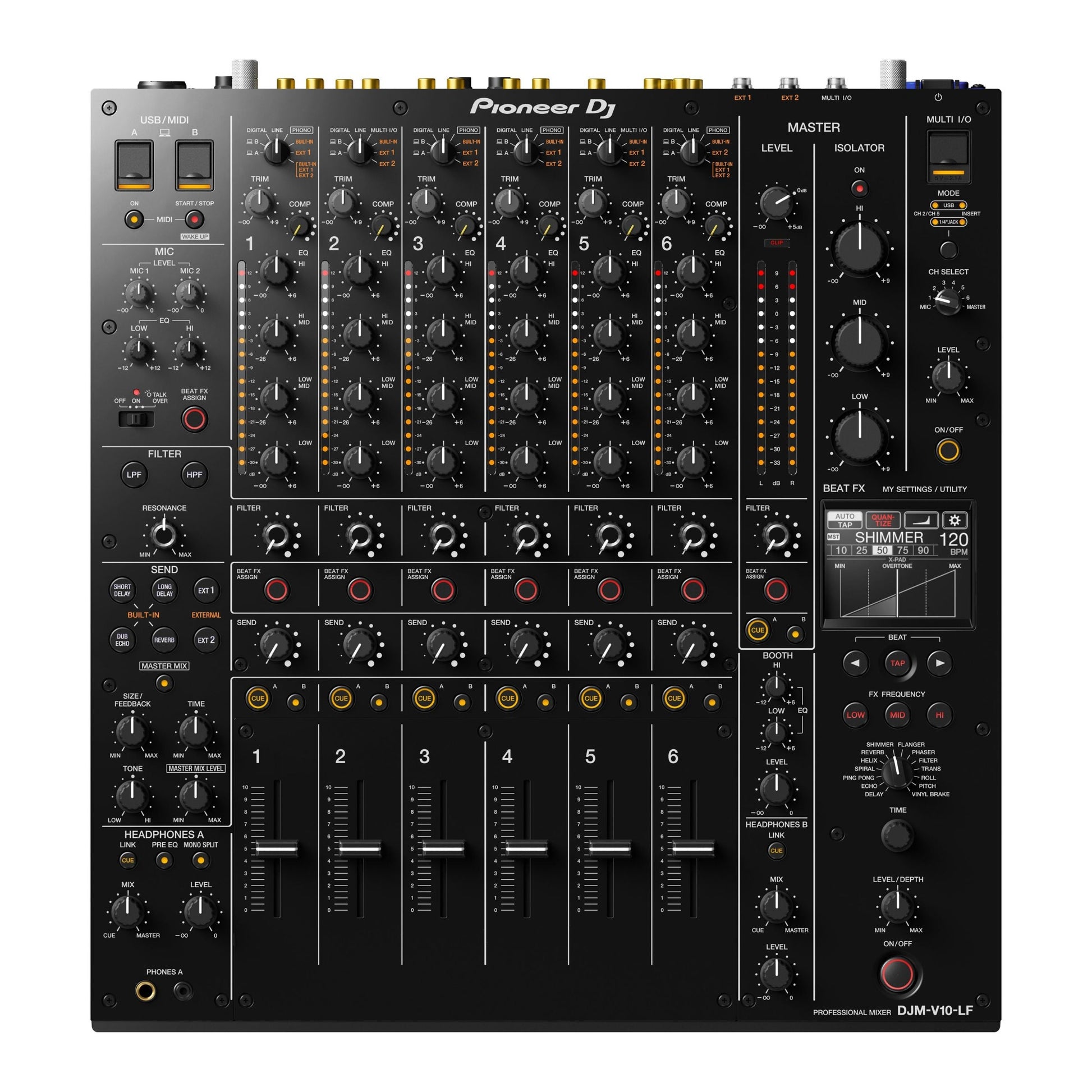

DJM-V10-LF 6-Channel DJ Mixer

Creative style 6-channel professional DJ mixer with long fader

The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes. The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely.

FEATURES

MIDI Control

• Full assignable MIDI controls

DVS Control

• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3

Accessories

• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use


Specifications

• Width: 17.23 in
• Depth: 18.39 in
• Height: 4.25 in
• Weight: 26.24 lb
• Sampling Rate: 96 kHz
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• Frequency Range: 20 - 40000 Hz
• S/N Ratio Mic: 79 dB
• Distortion: < 0.005 % (LINE)

Mic Connection

• XLR / 1/4-inch Combo Jack
• 1/4-inch TRS Jack

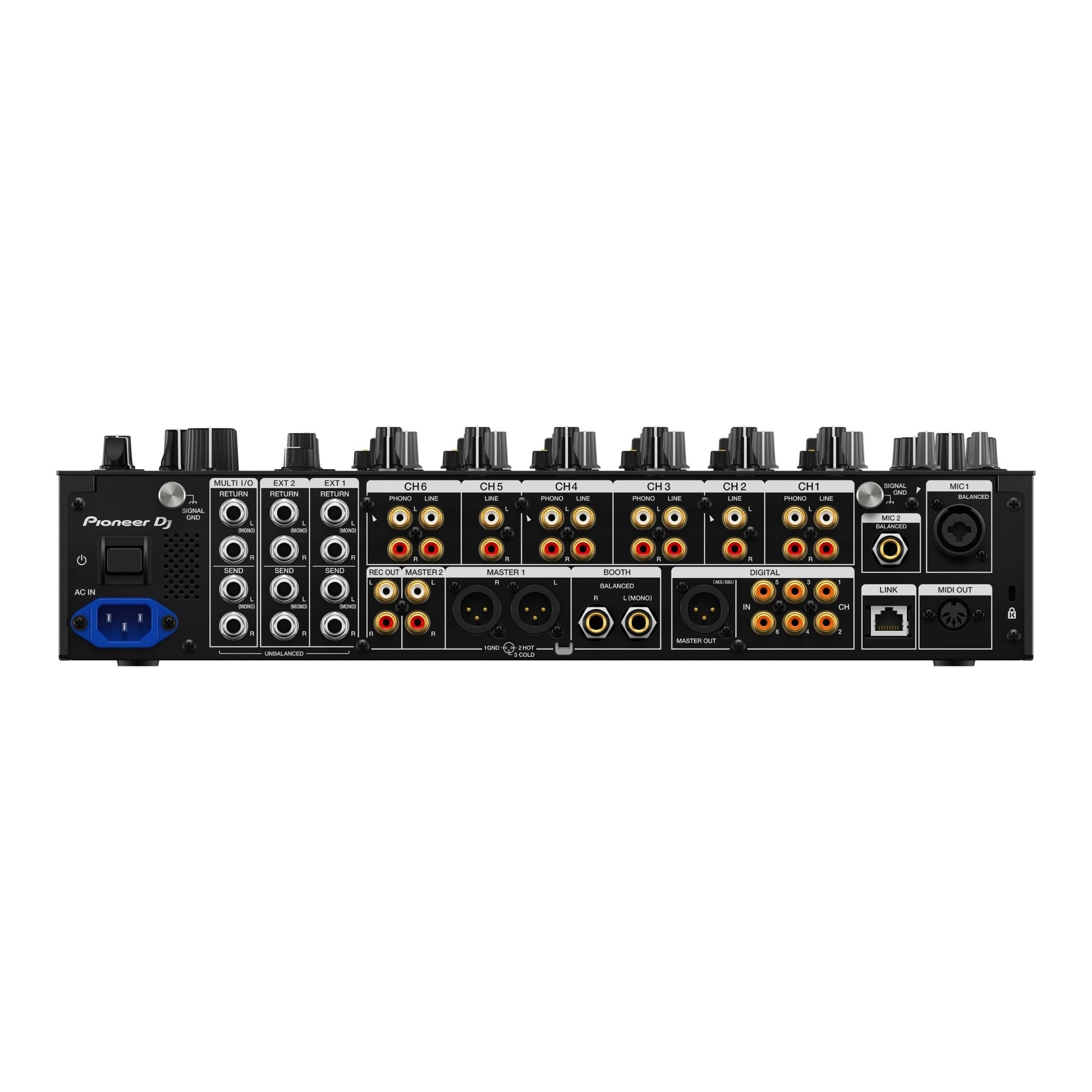

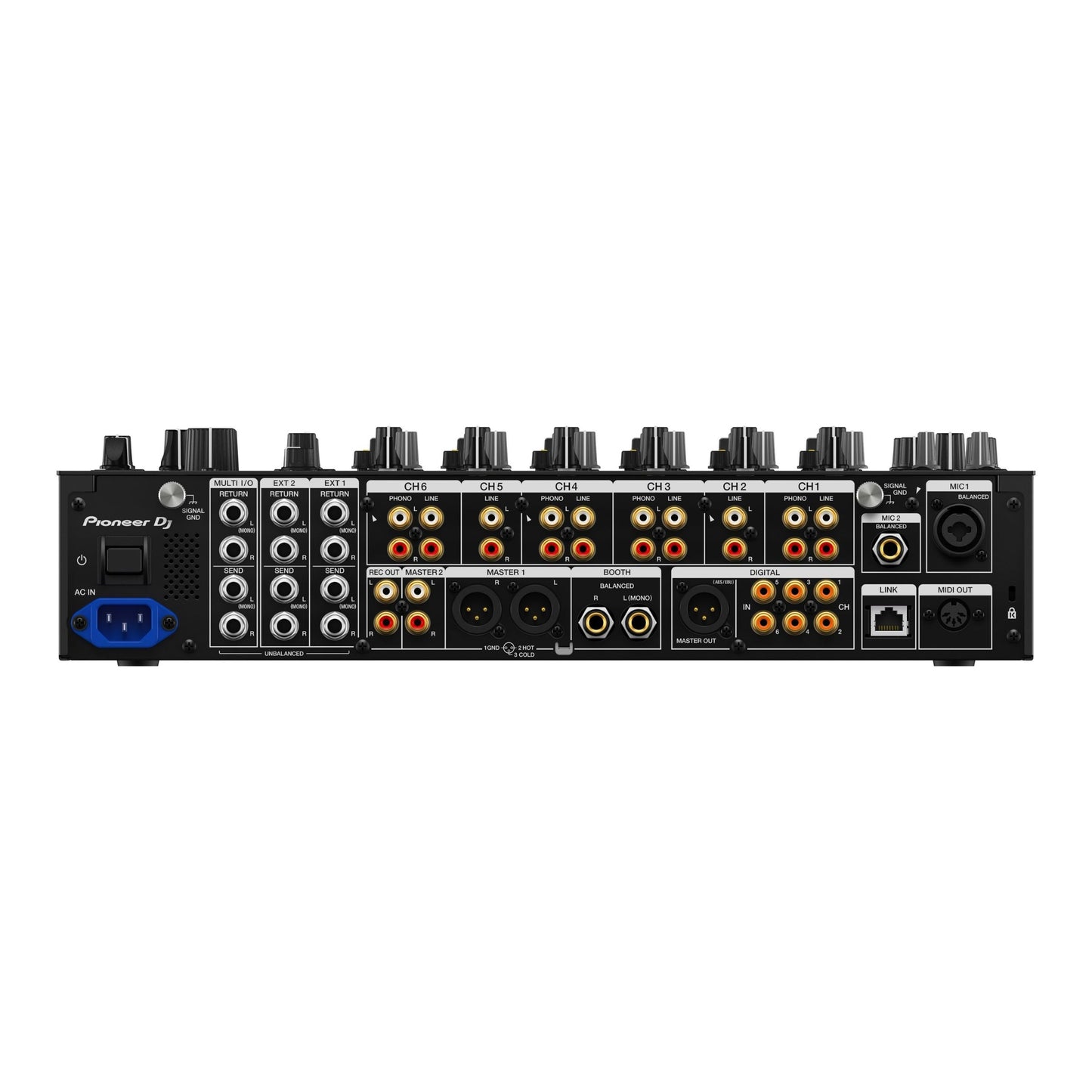

Inputs

• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)

Send/Return

• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)

Outputs

• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)

USB

• 2 USB B ports
• 1 USB A port
