DP-24SD

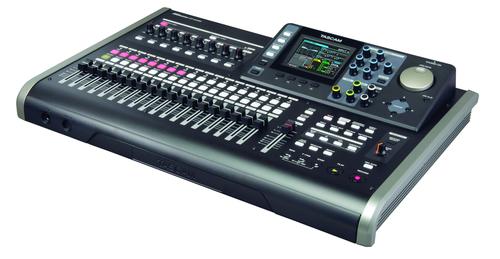

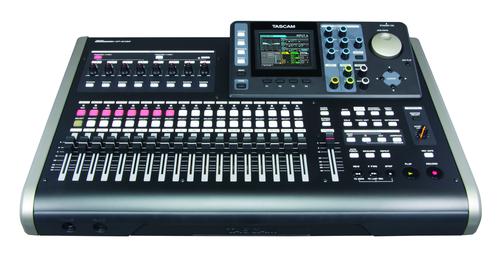

The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simultaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

Features include:

• Stress-free user interface for easy recording

• Simultaneous 24-track playback

• 12 mono tracks + 6 stereo tracks

• Simultaneous 8-track recording

• 44.1k or 48k Hz, 16 or 24-bit recording

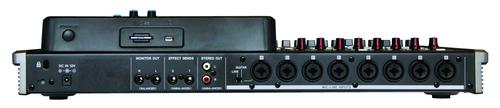

• 8 XLR/TRS combo connectors

• Phantom power supplied on all inputs (INPUT A-D, E-H)

• High-impedance input available (INPUT H)

• Stereo RCA output

• Stereo RCA output

• 2 effect send outputs (1/4″ TS jack)

• 70 mW/ch headphone amplifier

• Remote connector for optional RC-3F foot switch

• INPUT A-H and each track equipped with 3-band EQ

• Automatic punch in/out

• Various edit functions

• Undo and Redo function with Undo history

• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)

Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)

• Mix-down effects (Multi-band Compressor, Equalizer, Dither, Normalize)

• Track bounce function

• Virtual track

• Locate mark up to 99 for one song

• File transferring via USB 2.0

• Chromatic tuner

• Metronome

• 19 Faders

Peak-hold function on the level meter of the LCD

• Sub-frame editing

• Dedicated AC adapter included (TASCAM GPE248-120200-Z)

• SD card included

• RoHS certified
