Gator
Pedal Board Power Supply with 8 Isolated Outlets
Pedal Board Power Supply with 8 Isolated Outlets
Regular price
$191.99
Regular price
$119.99
Sale price
$191.99
Unit price
/
per
With eight DC-isolated 9V power outputs, the Gator GTR-PWR-8 is a smart solution for providing reliable, low-noise power to your effects pedalboard. The first two outlets offer a Sag control to adjust the voltage between 4V and 9V, perfect for starving fuzz pedals for creative effect. You’ll also find four more 9V/12V DC outputs, one 9V/18V DC output, and a 12V AC output — a comprehensive offering for any combination of analog and digital effects pedals. Its rugged metal enclosure is vented for superior heat dissipation, and integrated mounting slots allow for direct mounting to your pedalboard.
FEATURES
- Guitar Effects Pedal Power Supply with 8 Isolated Outputs
- Outputs: 2 x 4~9V DC @ 120mA, 3 x 9/12V @ 120mA, 1 x 9/18V DC @ 250mA, 1 x 9/12V DC @ 250mA, 1 x 12V AC @ 500mA
- Maximum Output Current: 1600mA
- AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use
- Voltage Adjustable via DIP Switch & SAG Knobs (min 4V - max 9V)
- Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
- Integrated Slots Allow for Direct Mounting to Pedal Board
- On/Off Power Switch with LED Indicator Light

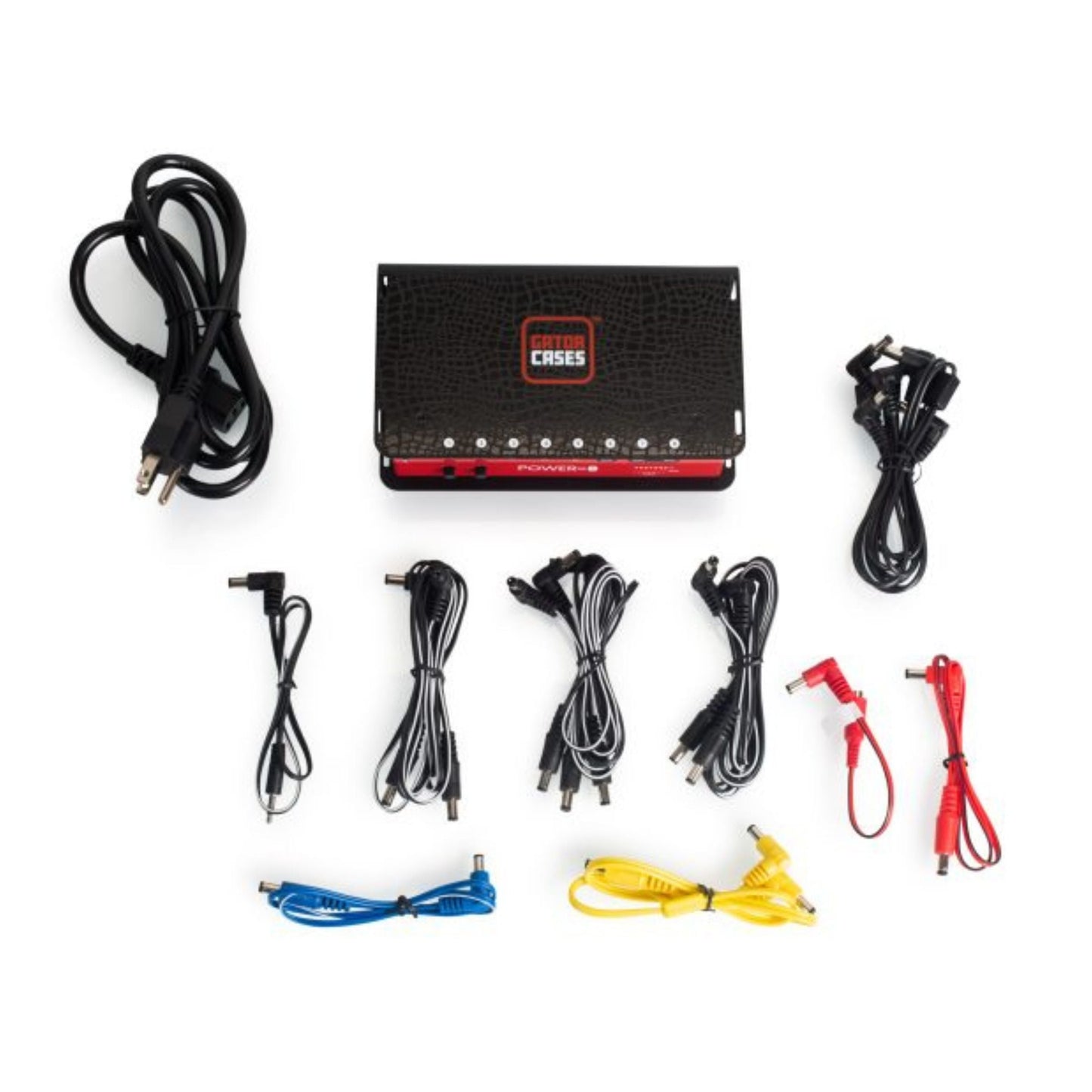

- Includes (x1) Power Cable, (x8) DC Power Cables, (x1) AC Power Cable, (x1) Polarity Inverter Cable, (x1) Voltage Doubler Cable, (x1) Mini Jack Cable
- Product Dimensions: 7.28”/185mm (L) x 4.25”/108mm (W) x 1.93”/49mm (H), Net Weight: 3 lbs./1.36 kg
