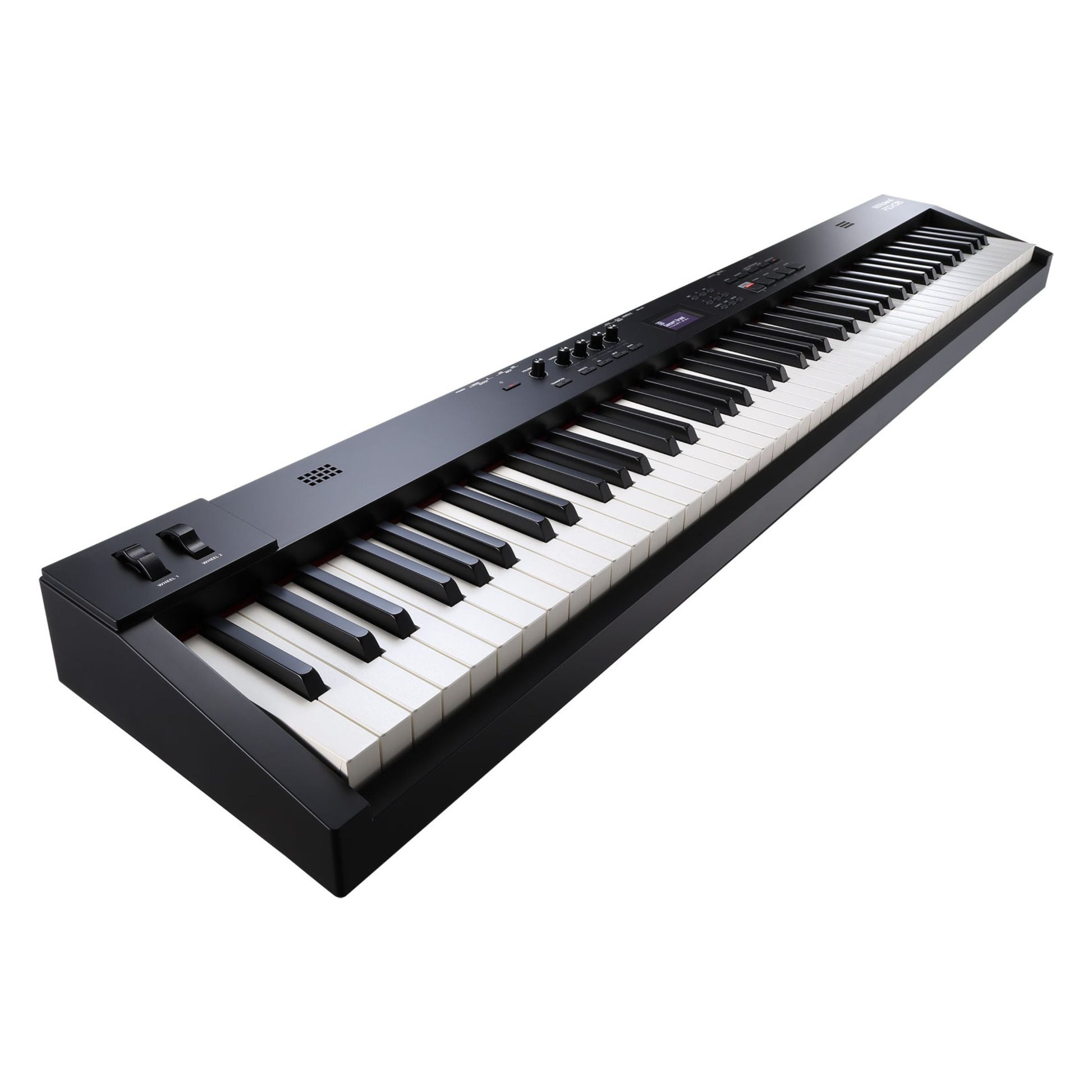

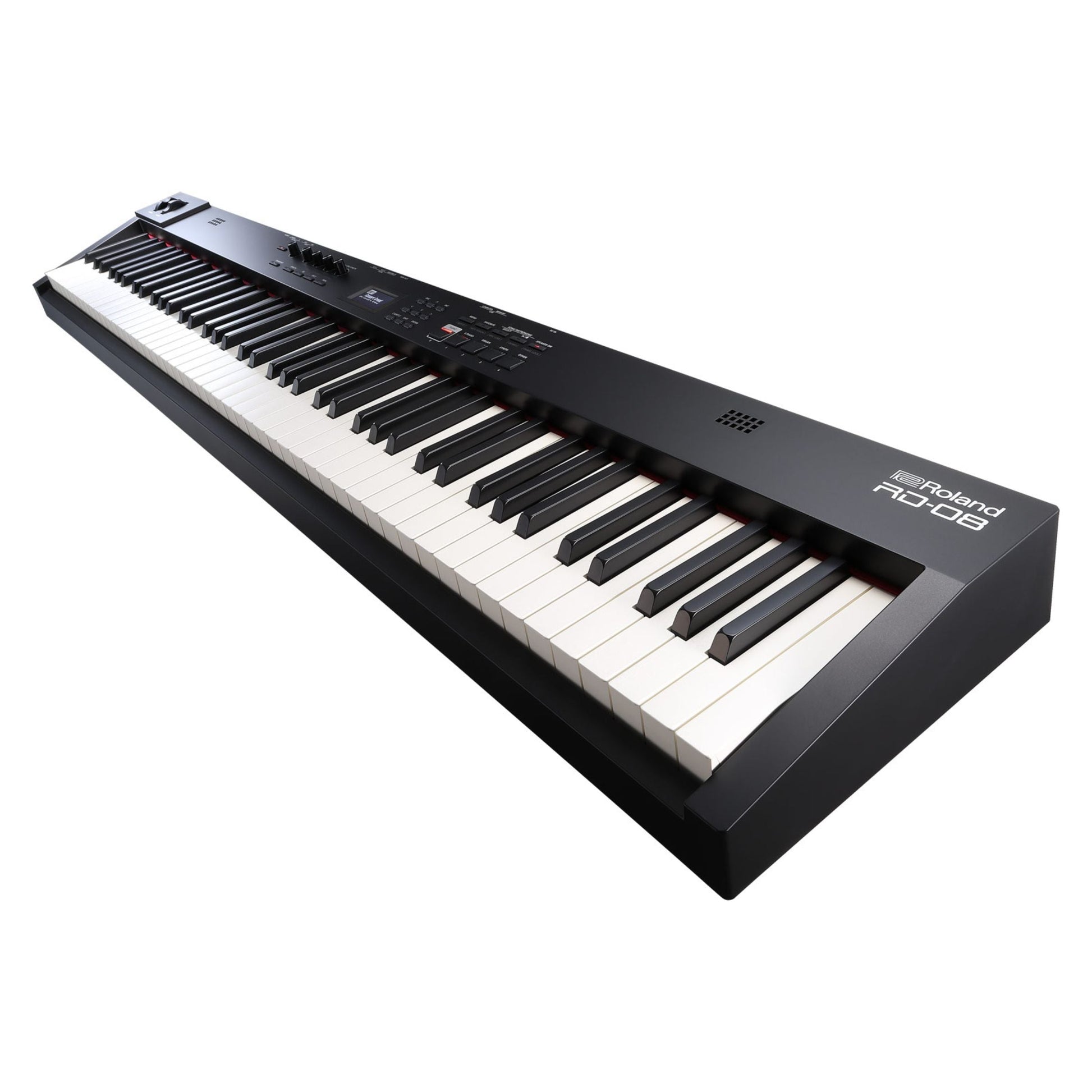

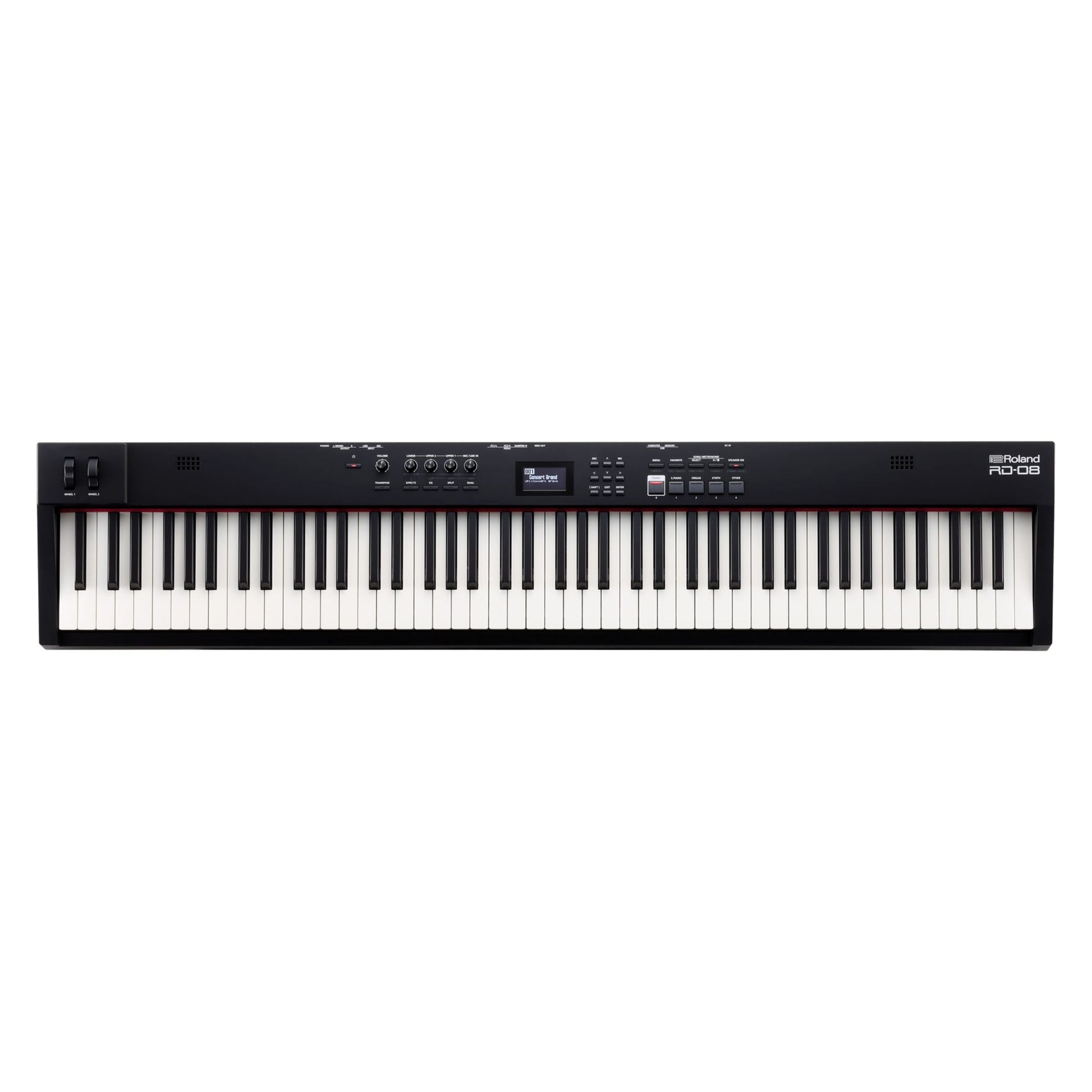

RD-08 Stage Piano

The RD-08 brings you legendary Roland RD piano performance in a lean, mean keyboard that’s easy to carry. Our most affordable RD to date delivers no-compromise sound and playability for professional gigging, supported by an intuitive interface for fast navigation in the heat of the moment. And with the upgradable design, you can add even more sounds and features as your needs evolve.

FEATURES

• Authentic RD stage piano with a streamlined design and expandable features
• Intuitive interface for fast navigation
• Light and compact for easy transport and setup
• World-class playability with 88-note weighted-action PHA-4 keyboard and Ivory Feel
• Acclaimed SuperNATURAL pianos and electric pianos ported from the RD-2000 and RD-88
• ZEN-Core engine with over 3000 additional sounds, including organs, synths, strings, brass, and more
• Room-filling onboard stereo speaker system
• USB audio/MIDI interface (audio support with Version 1.01 and later)
• Expand the instrument’s sounds and features with the RD-08 Upgrade available on Roland Cloud

SPECIFICATIONS

Keyboard
88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)

Sound Generator
ZEN-Core
SuperNATURAL Piano
SuperNATURAL E.Piano

Parts
3 parts

Tones
Scene: 100
Tone: Over 3,000

Effects
Zone Multi-effects: 3 systems, 90 types
Zone EQ: 3 systems
Zone Tone Color: 3 systems
Scene Multi-effects (IFX): 90 types
Sympathetic Resonance
Chorus/Delay: 8 types
Reverb: 6 types
Master Compressor
Master EQ
Input Reverb
Input EQ

Other Functions
Favorite
Song Player
Metronome

Controllers
Assignable Wheel x 2
Control knob x 4
Master Volume knob
Damper Pedal
Assignable Pedal x 2

Rated Power Output
6 W x 2

Speakers
Full Range 12 cm x 2
Tweeter 2 cm x 2

Display
Graphic LCD 128 x 64 dots

External Storage Device
USB flash drive

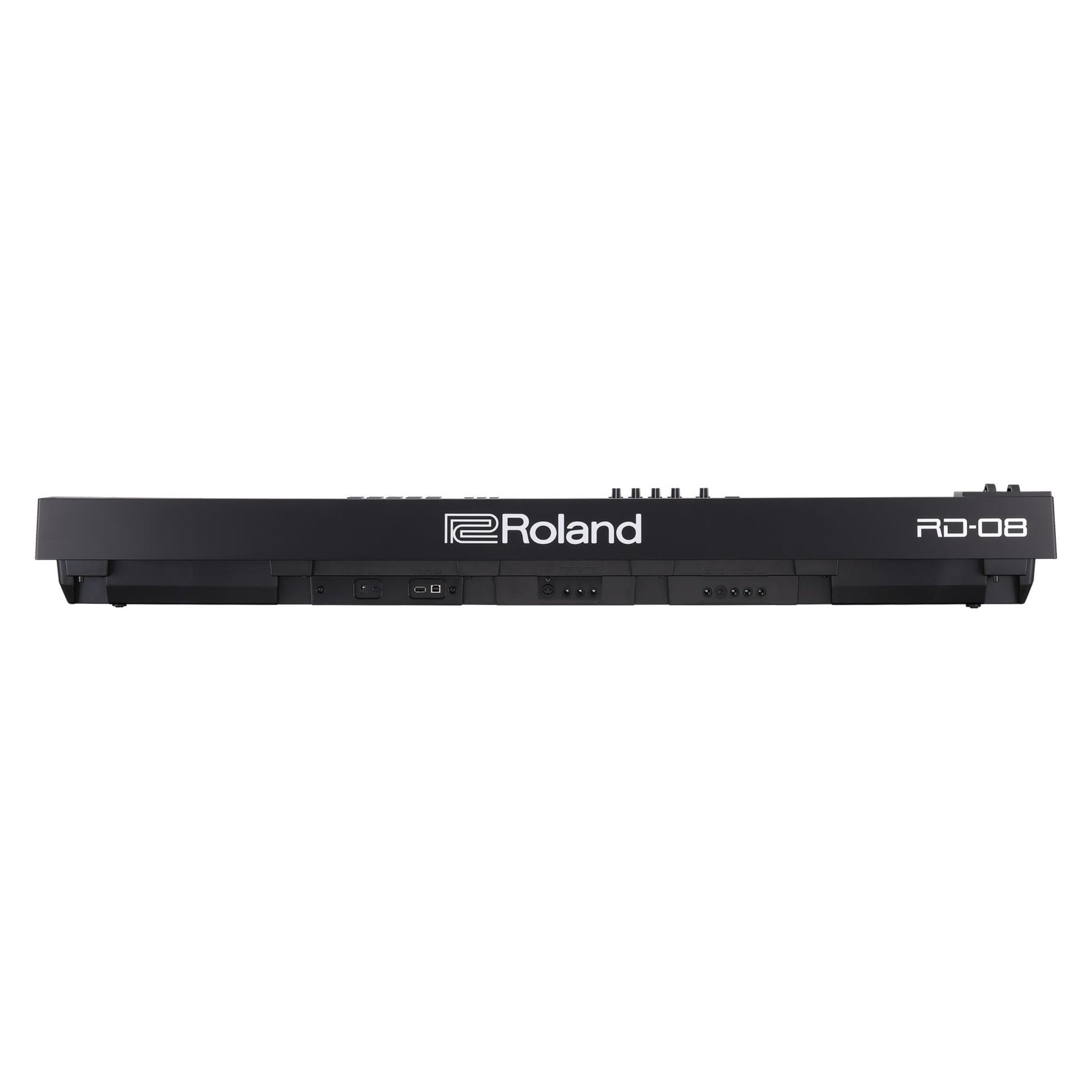

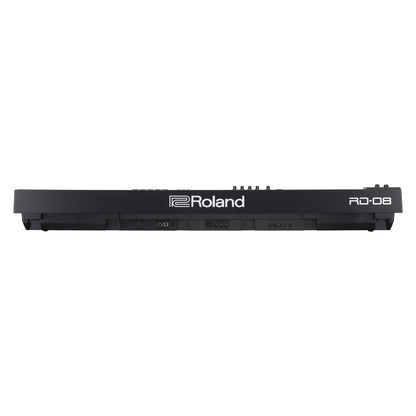

Connectors
PHONES jack: stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
MIC INPUT jack: 1/4-inch phone type
LINE INPUT jack: Stereo miniature phone type
Pedal (DAMPER, FC1, FC2) jacks: TRS phone type
MIDI OUT jack
USB FOR UPDATE port: USB A ( Mass Storage)
USB COMPUTER port: USB B (Class Compliant for MIDI)
DC IN jack

Power Supply
DC 12 V: AC adaptor

Current Draw
1,500 mA

Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Pedal Switch

Options (sold separately)
Stand (KS-13, KS-11Z)
Pedal (DP-2, DP-10, EV-5, RPU-3)
Carrying Bag: (CB-B88V2)

Width
1,284 mm
50-9/16 inches

Depth
258 mm
10-3/16 inches

Height
159 mm
6-5/16 inches

Weight
13.5 kg / 29 lbs 13 oz (excluding AC adaptor)
