Hal Leonard

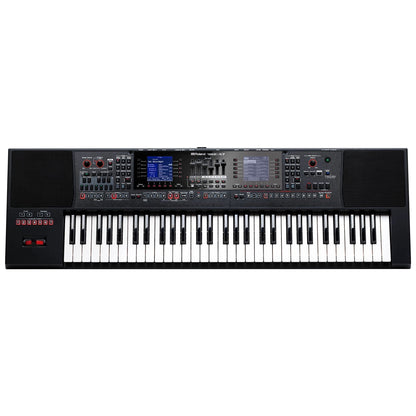

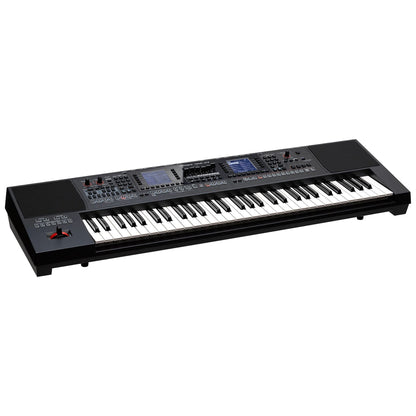

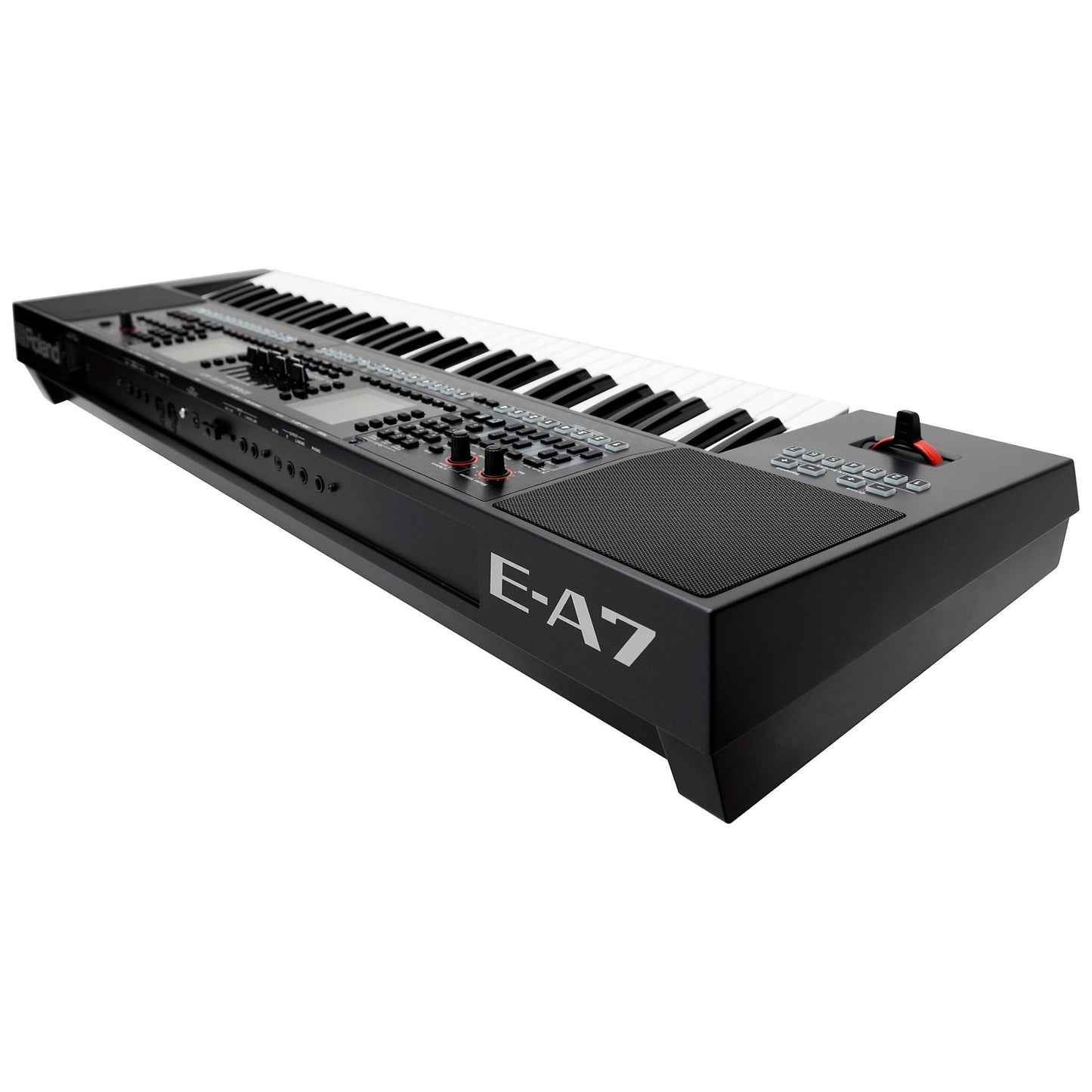

E-A7 Expandable Arranger

E-A7 Expandable Arranger

SKU: 3660210

$1,629.99
$1,629.99
Sale Sold out

A WORLD OF SOUNDS AND BACKING STYLES AT YOUR FINGERTIPS

The E-A7 is a versatile arranger keyboard for musicians needing professional sounds and authentic backing styles from all over the world. Using the E-A7 is fast and intuitive thanks to its logical dual-screen layout - styles on the left and sounds on the right, with most options having dedicated, quick-access buttons. You can import WAV files to create your own instruments, or even sample directly from the keyboard. And with the powerful E-A7 Tone Manager software, you can use your computer to edit and organize user tones and drum kits, work with samples, and more. Singers will appreciate the microphone input with dedicated vocal effects, while the whole keyboard is easy to gig with, weighing in at just 8 kg/18 lbs. Wherever you're going with your music, the E-A7 will help you get there.

FEATURES

  • Over 1,500 versatile tones from all over the world
  • WAV file import and onboard sampling function
  • Huge library of backing styles from Asia, the Middle East, Europe, and South America
  • Powerful arranger engine with direct control buttons and versatile, one-touch performance options
  • 156 dedicated buttons for fast access to commonly used functions
  • Logical dual-screen layout, with backing styles on the left and sounds on the right
  • Microphone input with dedicated vocal effects
  • Easy to carry and transport, weighing just 8 kg/18 lbs.
  • E-A7 Tone Manager (Windows/Mac) for creating user tones and drum kits, importing and editing samples, and organizing E-A7 setups
  • Version 2.00 update provides additional styles and operation enhancements based on user feedback

SPECIFICATIONS

Keyboard
61 keys (with velocity)

Sound Generator
Maximum Polyphony - 128 voices (varies according to the sound generator load)
Parts
4 keyboard parts (UP1, UP2, UP3, LWR) + 16 song parts

Tones
- Preset Tone: Over 1,500 Tones
- Preset Drum Kit: Over 100 Drum Kits
* GM2 compatible sounds are included.
- User Tone: 256 Tones
- User Drum Kit: 128 Drum Kits

Styles
- Preset Style: Over 600 Styles
- User Style: Unlimited number (storage on internal memory and USB flash drive)

Style Controls
Intro x 4, Main x 4, Fill x 4, Break, Ending x 4
Song (Audio) Recording
Format: 16-bit linear, 44.1 kHz, WAV

Controllers
Assignable Lever
Assignable Switch x 7
Assignable Control Pedal
Part Level Slider x 6
Multifunction Pads

Display
Dual Graphic LCD (160 x 160 dots x 2, with backlit)

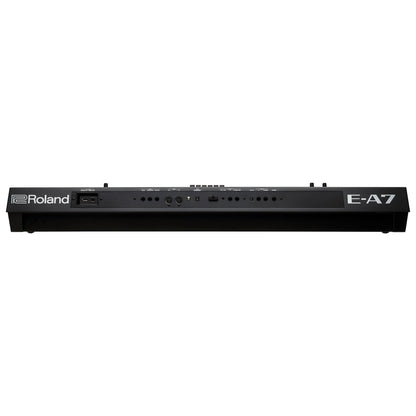

Connectors
PHONES jack: Stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
EXT IN jack: Stereo miniature phone type
INPUT jacks (L/MONO or MIC, R): 1/4-inch phone type
PEDAL jacks (HOLD, EXPRESSION, CONTROL)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (USB MIDI)
DC IN jack

Speakers
2 x 10 cm

Rated Power Output
2 x 12 W

Power Supply
AC Adaptor

Current Draw
1,500 mA

Accessories
Owner's Manual
Music Rest
AC Adaptor
Power Cord (for AC Adaptor)

Size and Weight
Width - 1,045 mm | 41-3/16 inches
Depth - 318 mm | 12-9/16 inches
Height - 136 mm | 5-3/8 inches
Weight - 7.9 kg | 17 lbs. 7 oz.
