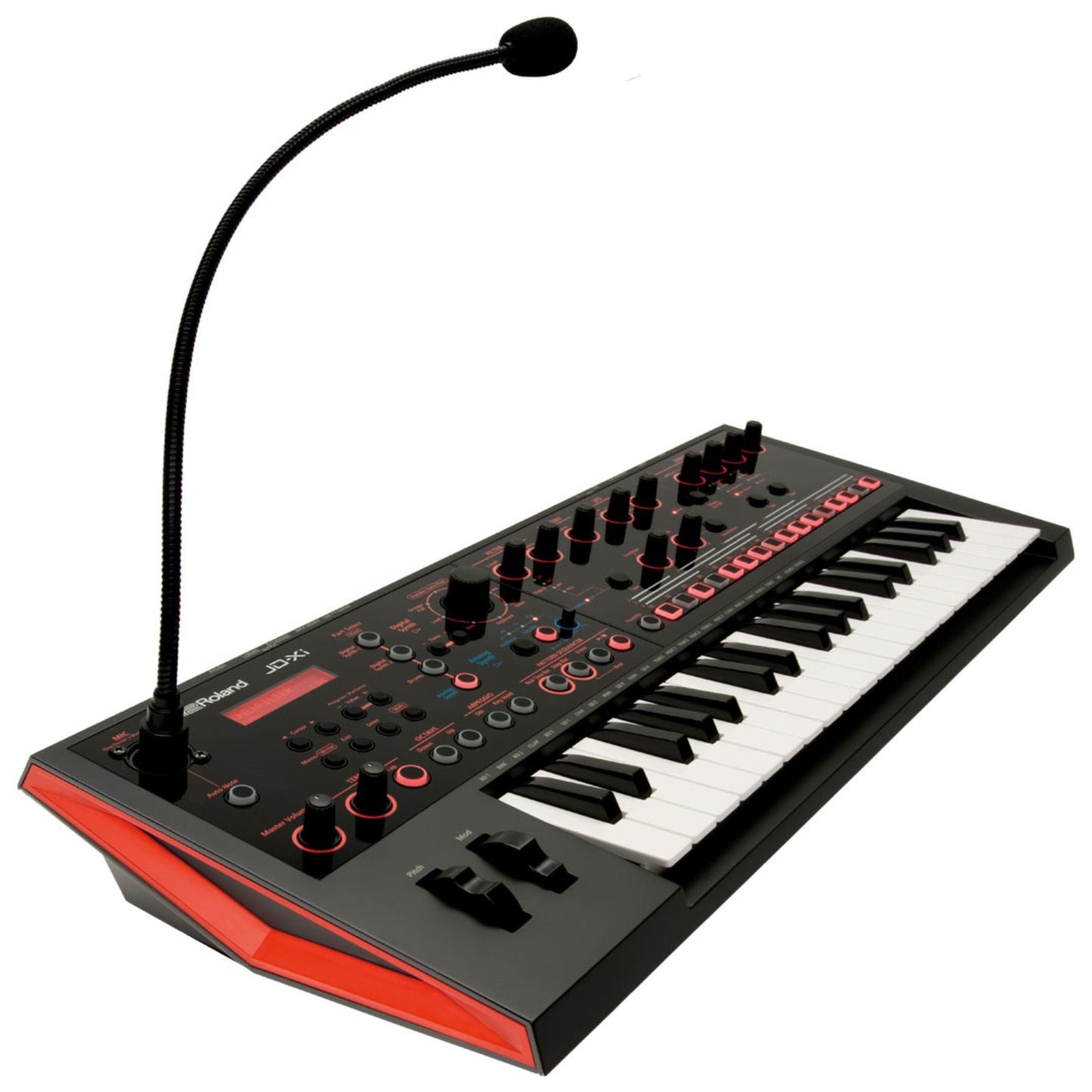

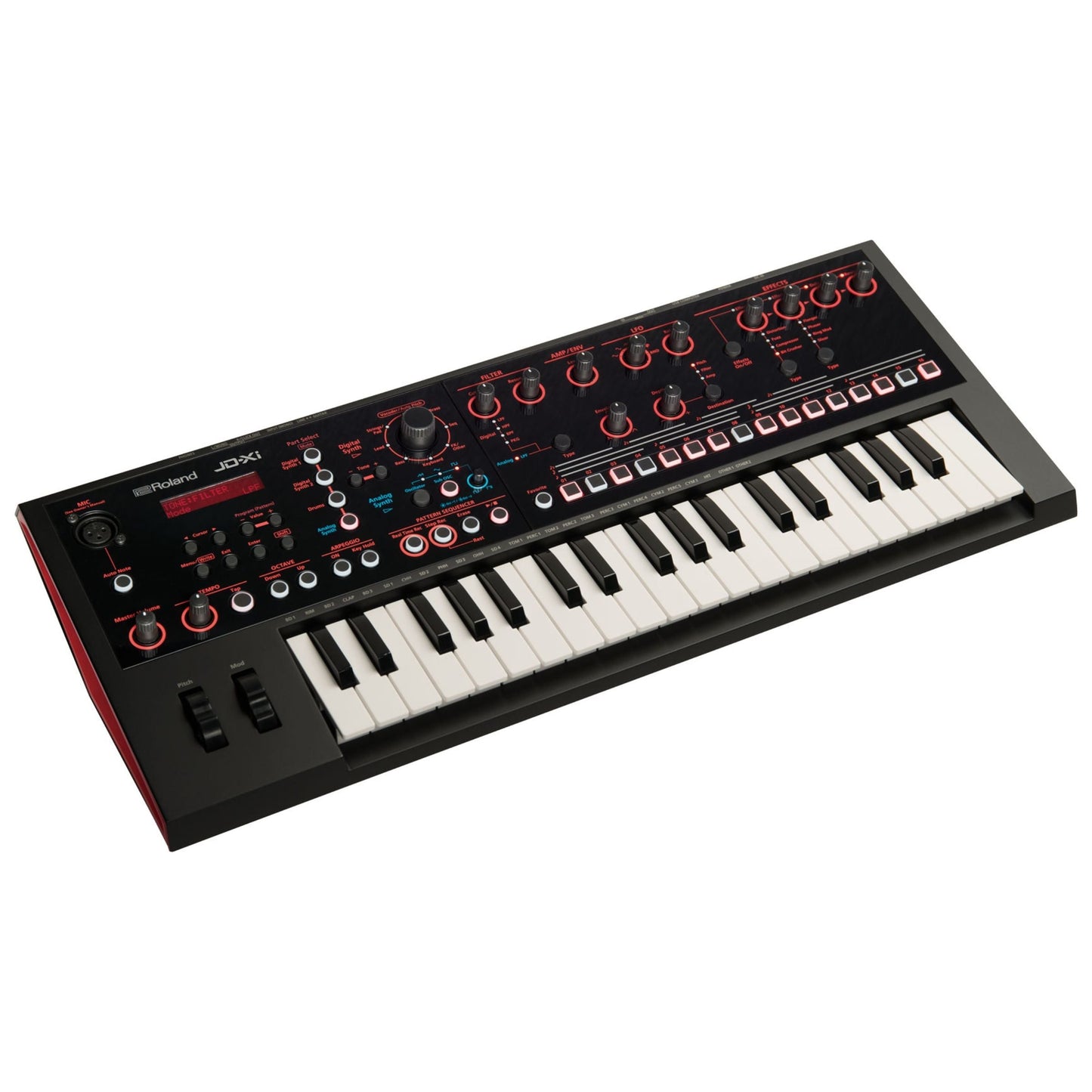

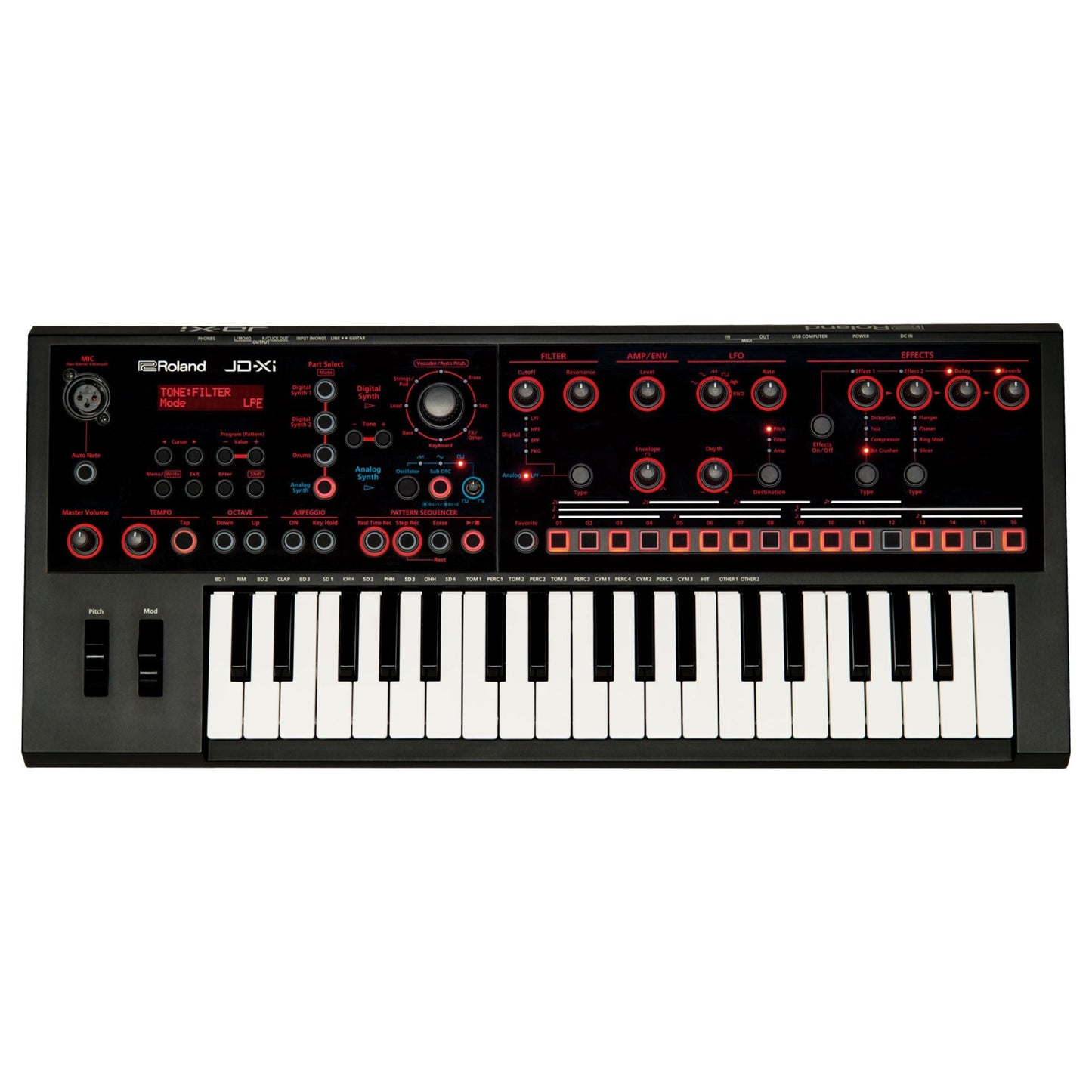

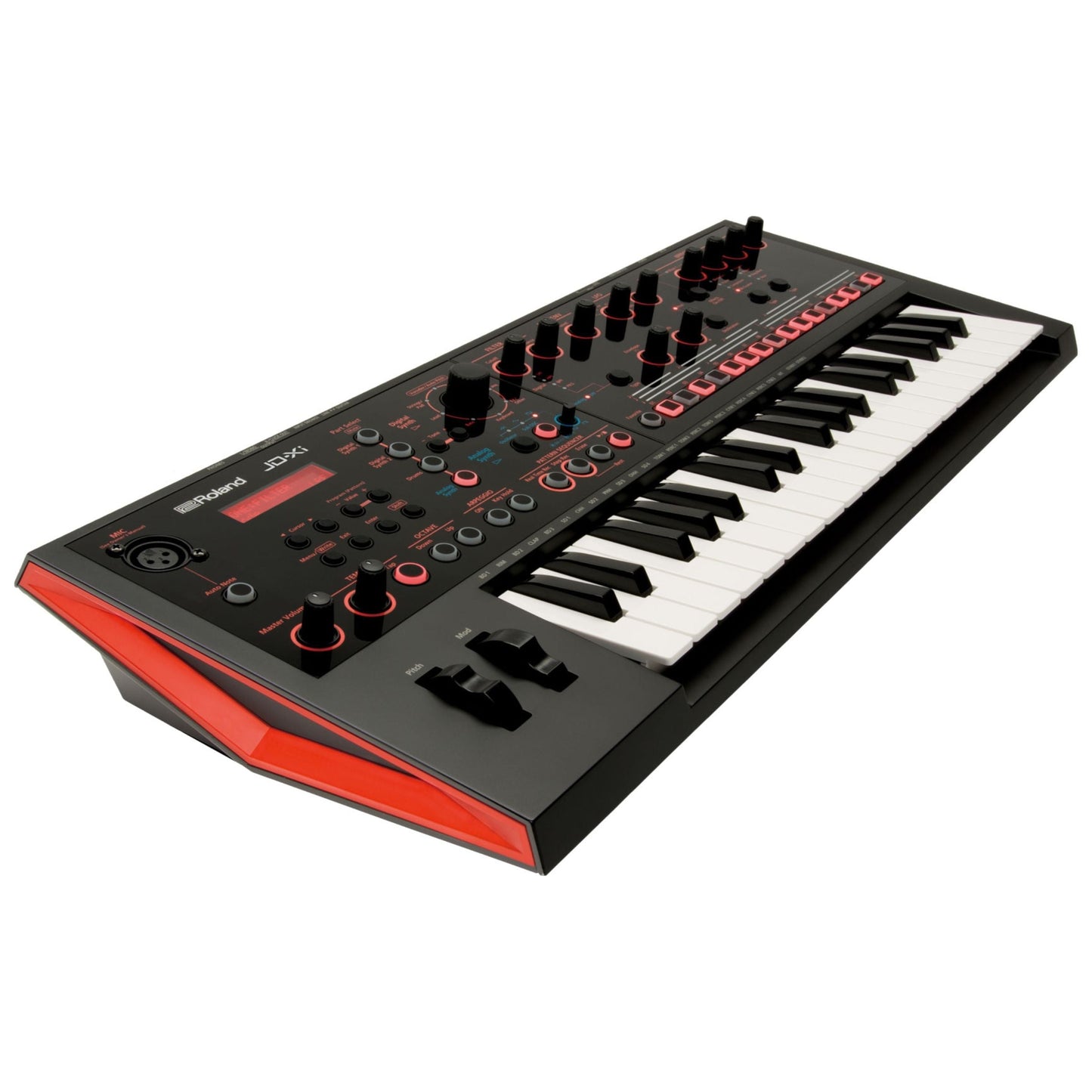

JD-Xi Synthesizer

Powerful Compact Synth with Onboard Pattern Sequencer and Vocal FX

Tiny, mighty, and affordable, the JD-Xi puts a true analog synth engine, Roland’s famous SuperNATURAL synth sounds, and many other creative tools under one hood. Equipped with 37 mini keys, this compact instrument delivers fat, warm analog bass and lead tones with ample controls for hands-on tweaking, plus polyphonic PCM essentials like pads, strings, brass, and more. Create impressive loops in a flash with the pattern sequencer and built-in drum kits, and explore expressive vocal textures with the gooseneck mic, Vocoder, and AutoPitch. Small in size and large in versatility, the JD-Xi is all about big sounds and big fun!

FEATURES

• Interactive crossover synthesizer with analog and digital sound engines
• Analog synth section provides authentic lead and bass tones
• Two digital synth sections with SuperNATURAL synth tones
• Four-track pattern sequencer and high-quality rhythm sounds
• Included gooseneck mic for use with built-in Vocoder and AutoPitch
• Process sounds with four simultaneous effects (Effect 1/2, Delay, Reverb)
• USB for audio/MIDI communication with computer music software
• Includes a large selection of ready-to-play sounds and patterns
• Additional sounds and patterns available for download at Roland’s Axial sound library site

SPECIFICATIONS

Keyboard
37 mini keys (with velocity)

Maximum Polyphony
129 voices (Digital Synth/Drum Kit: 128, Analog Synth: 1)
(Max. polyophony of the Digital Synth parts: 64 voices)

Parts
4 Parts
(Digital Synth Part: 2, Drums Part: 1, Analog Synth Part: 1)

Tones
Digital Synth Tone (SuperNATURAL Synth)
Analog Synth Tone
PCM Drum Kit
* For an analog synth tone, the oscillator, sub-oscillator, and filter sections consist of analog circuits.

Effects
Effect1 (Distortion, Fuzz, Compressor, Bit Crusher)
Effect2 (Flanger, Phaser, Ring Mod, Slicer)
Delay: 2 types
Reverb: 6 types

Controllers
Pitch Bend/Modulation Wheel

Display
16 characters 2 line LCD

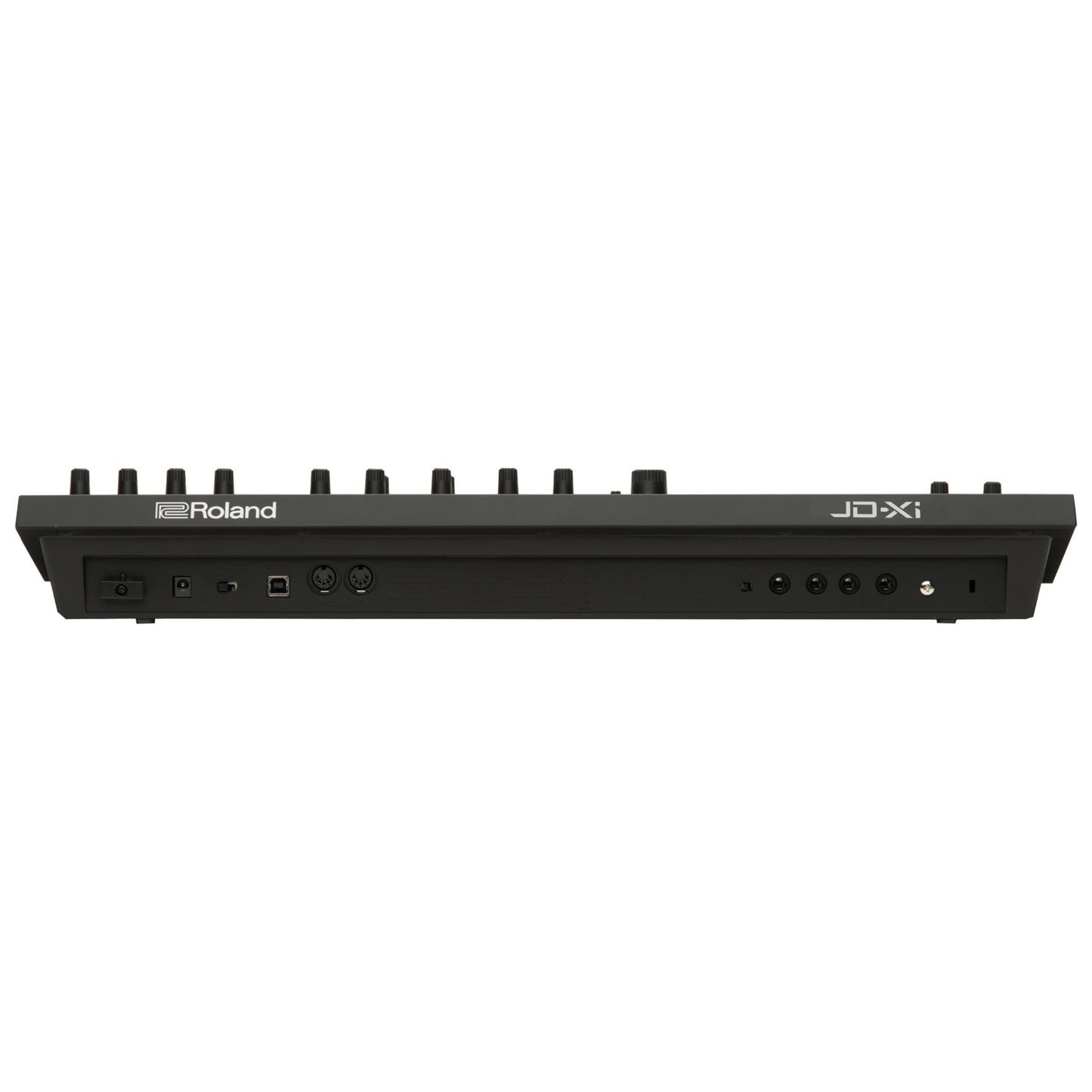

Connectors
Headphones Jack: Stereo 1/4-inch phone type
Output Jacks (L/MONO, R): 1/4-inch phone type
Input Jack (LINE(MONO) / Guitar Input): 1/4-inch phone type
MIDI Connectors (IN, OUT)
USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI)
(Use a USB cable and a computer with a USB port that support Hi-Speed USB.)
DC IN Jack
MIC Input Jack: XLR type, unbalance

Power Supply
AC Adaptor

Current Draw
1,000 mA

Accessories
Owner's Manual
AC Adaptor
Microphone

Size and Weight
Width - 575 mm | 22-11/16 inches
Depth- 245 mm | 9-11/16 inches
Height - 85 mm | 3-6/16 inches
Weight - 2.2 kg | 4 lbs. 14 oz.
