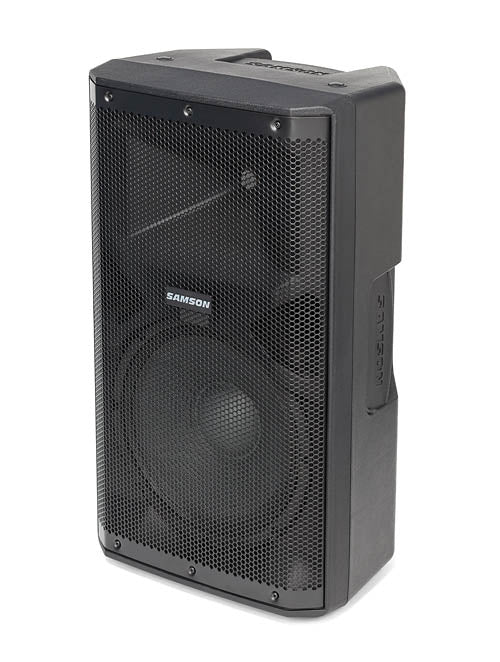

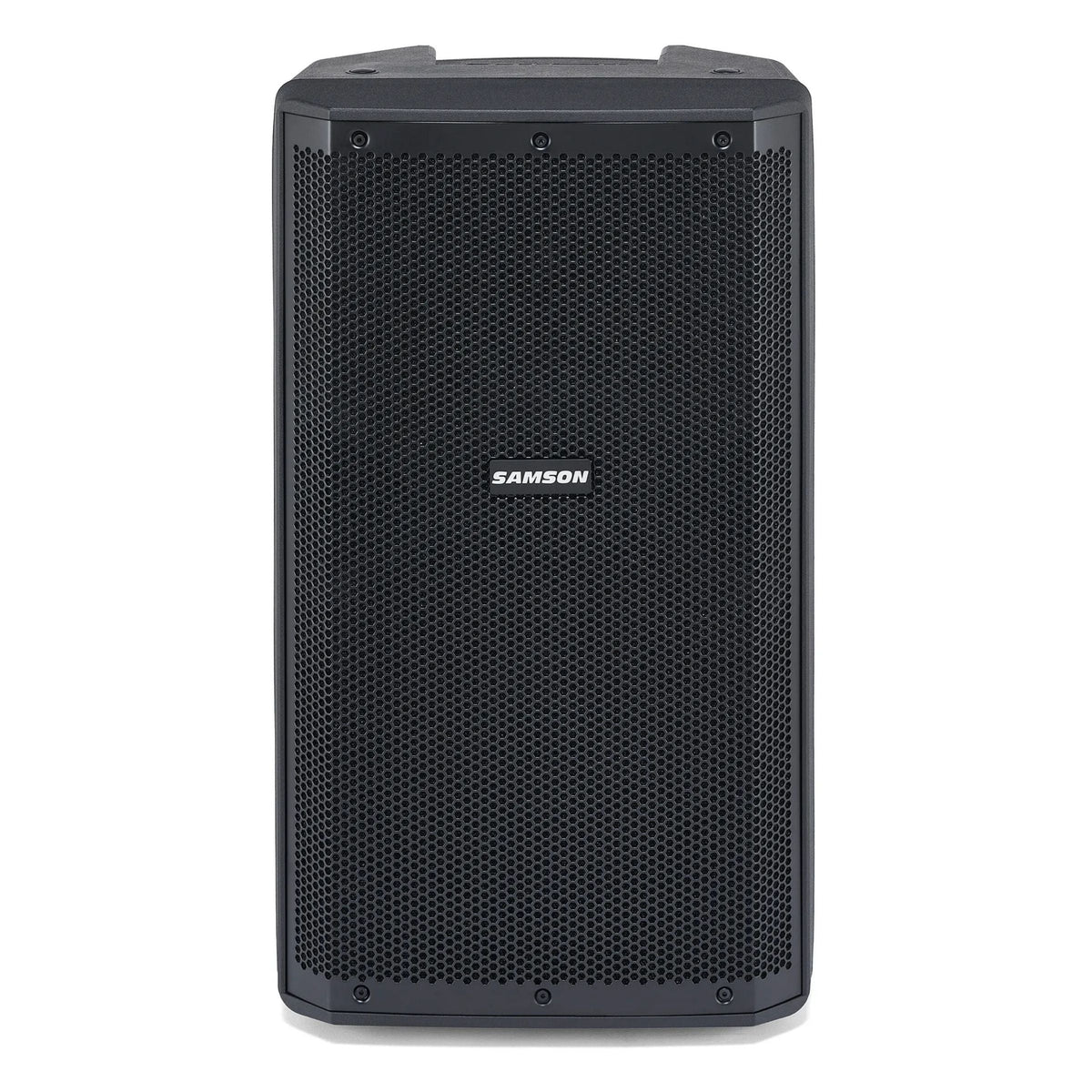

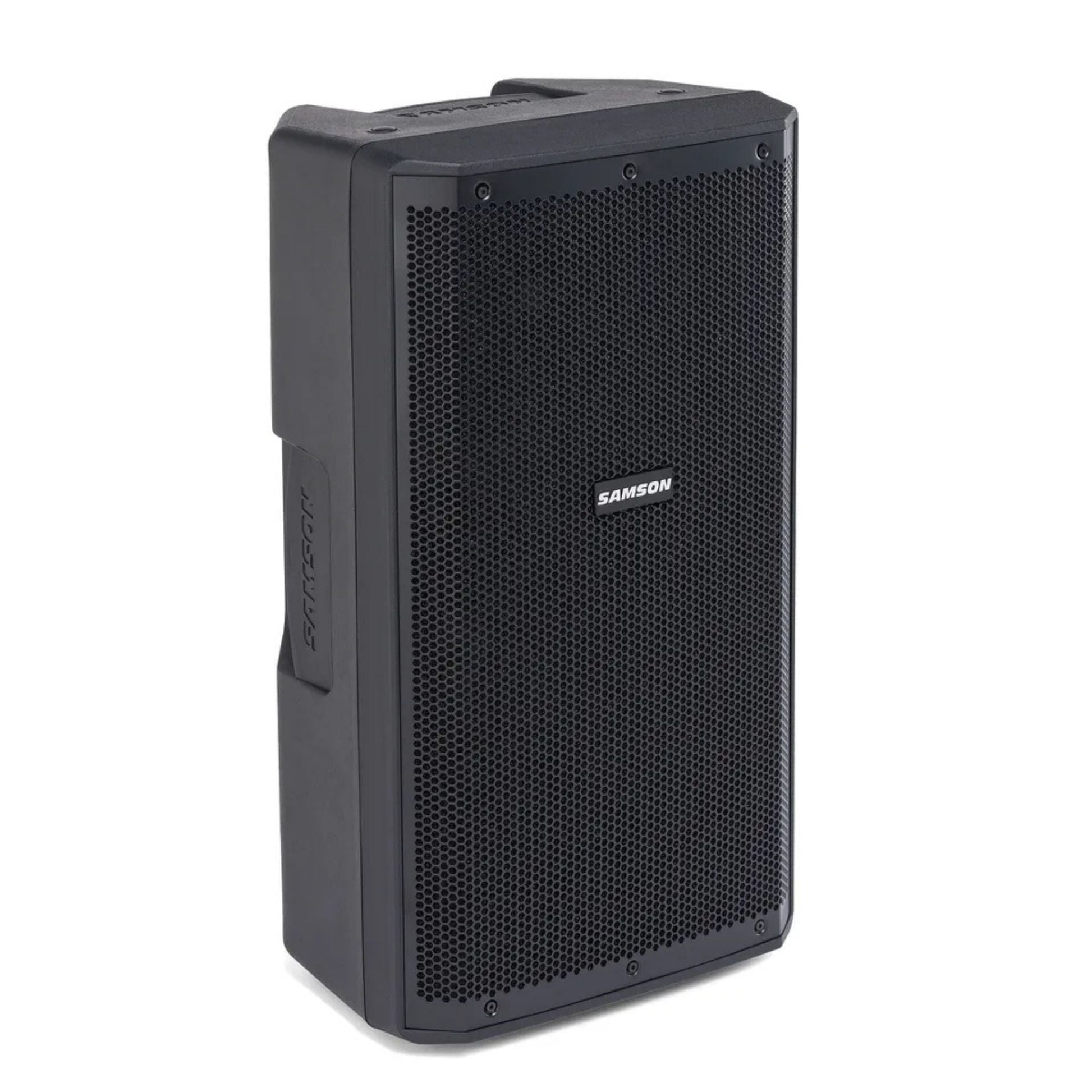

RS112A 2-Way Active Loudspeaker

The RS112A 400W 2-way active loudspeaker brings powerful, versatile, and convenient sound reinforcement to a wide range of audio applications. Easy to transport and set up, this powerful speaker features an onboard mixer with mic/line input options, Bluetooth® audio streaming, and a USB wireless port for connecting Samson XPD Series wireless microphone systems. Featuring a bi-amplified design (separate high and low frequency amplifiers), the RS112A offers greater efficiency, more accurate sound, and an impressive 400 watts of power. This power is delivered by a 12" extended-range woofer with a large 2" voice coil that provides excellent coverage and clarity while keeping the low end tight and punchy. The 1" tweeter adds smooth, crisp highs for a well-balanced sonic image.

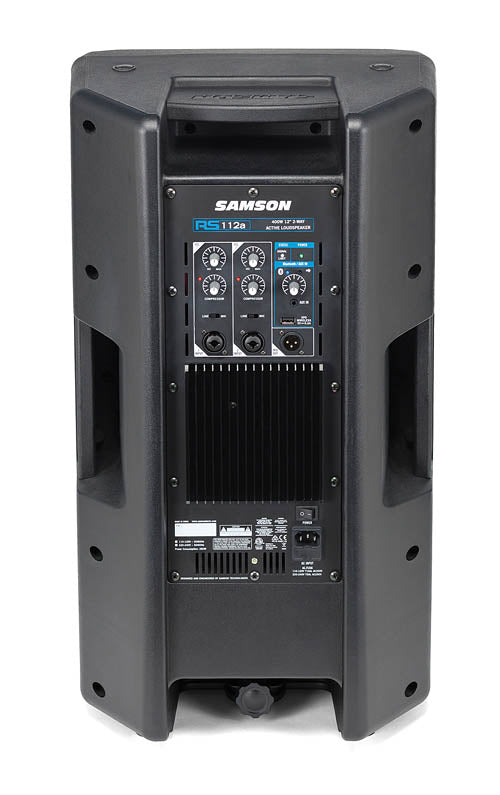

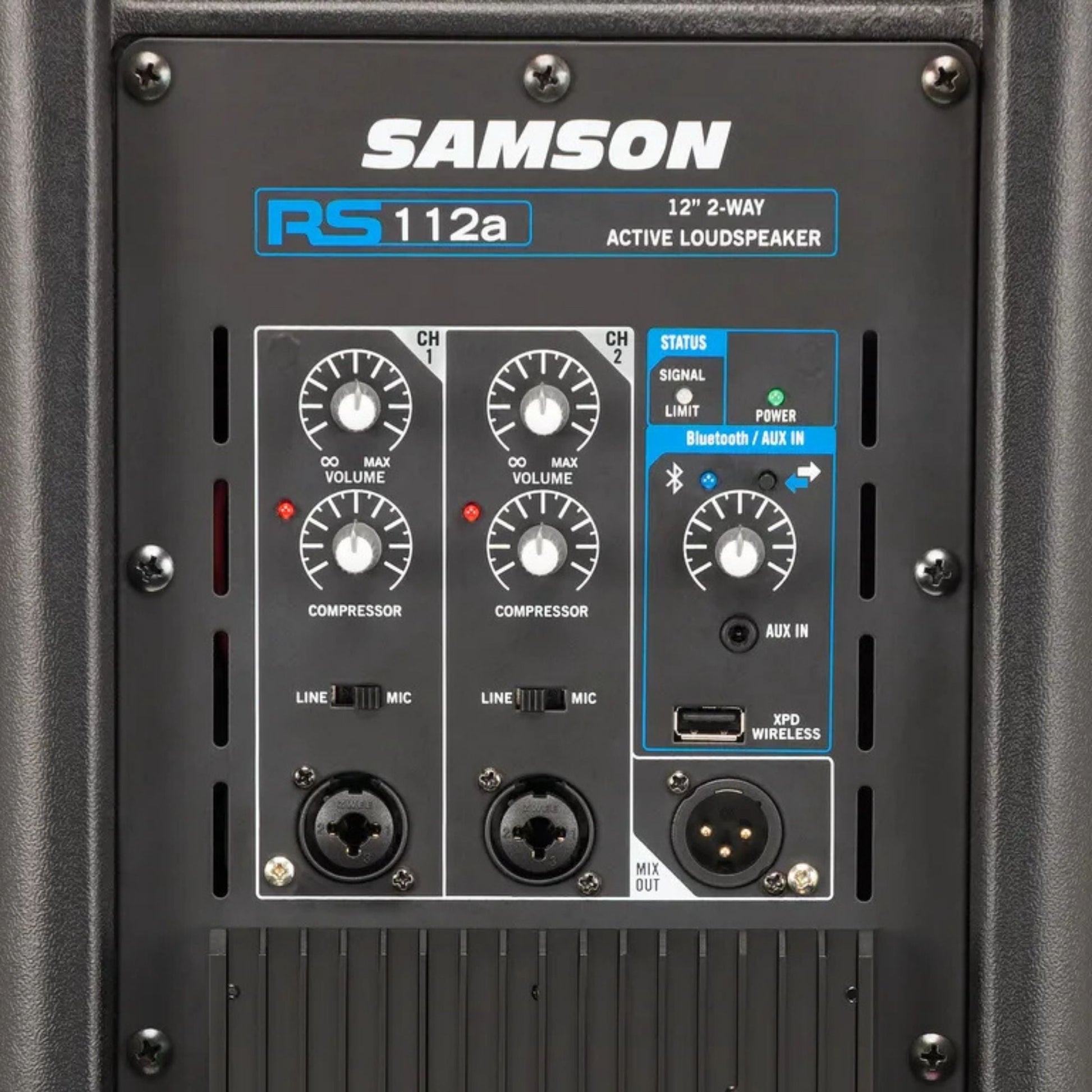

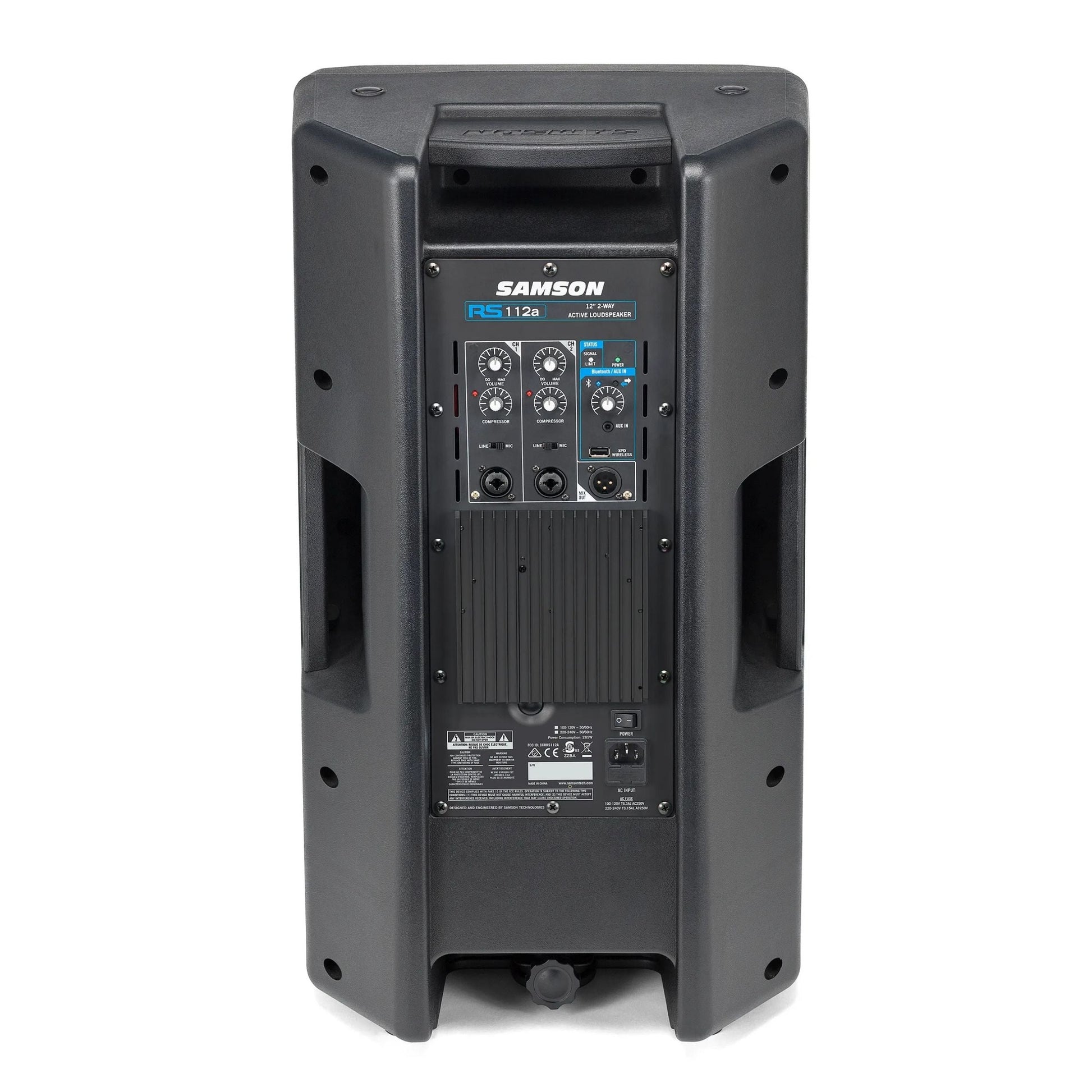

The RS112A speaker features an on-board mixer with two selectable mic/line XLR-1/4" combo input channels with variable compressor controls. An additional channel provides a 1/8" line level input, Bluetooth connectivity, and a USB wireless port for use with Samson XPD wireless microphone systems (sold separately). The RS112A includes an XLR mix output for daisy-chaining additional speakers to expand your sound system.

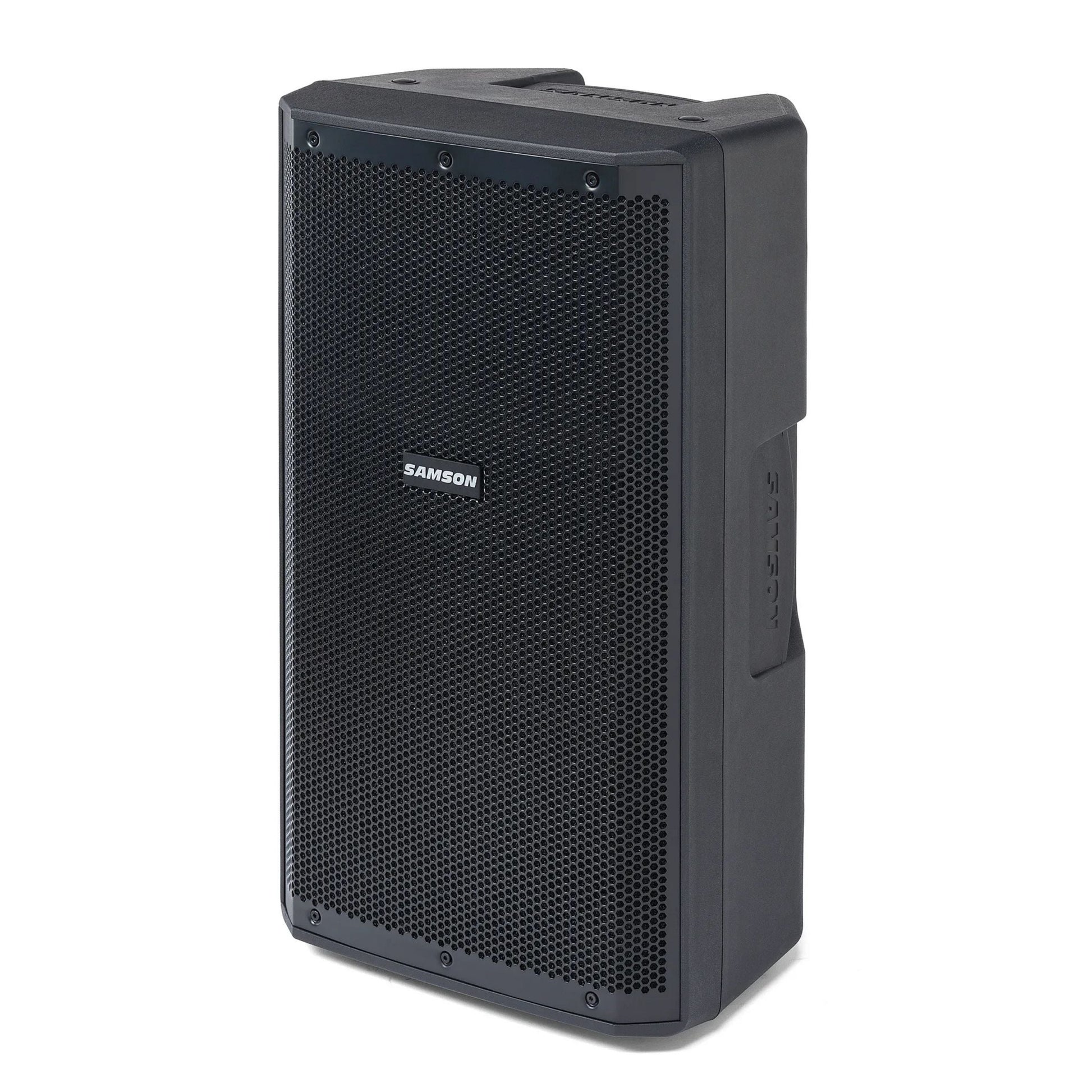

In addition to its high-impact polypropylene cabinet construction, the RS112A features a full metal grille for maximum component protection. The cabinet offers horizontal/angled floor monitor positioning, a 1 3/8" pole mount for stand placement, and four M10 fly points for permanent speaker installation. The RS112A also includes convenient top and side carrying handles for easy transport.

FEATURES

• 2-way active loudspeaker
• 400 watts Peak/200 watts RMS of power
• 12" extended range low frequency driver with 2" voice coil
• 1" high frequency driver
• Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls
• Bluetooth connectivity to connect wireless music sources
• 1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
• XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
• Independent volume controls on all channels
• XLR Mix output for daisy chaining additional speakers
• Signal/Limit indicator
• Solid polypropylene enclosure with impact resistant design
• Three large ergonomic carry handles
• Integrated 1 3/8" speaker stand mount
• Four M10 fly points

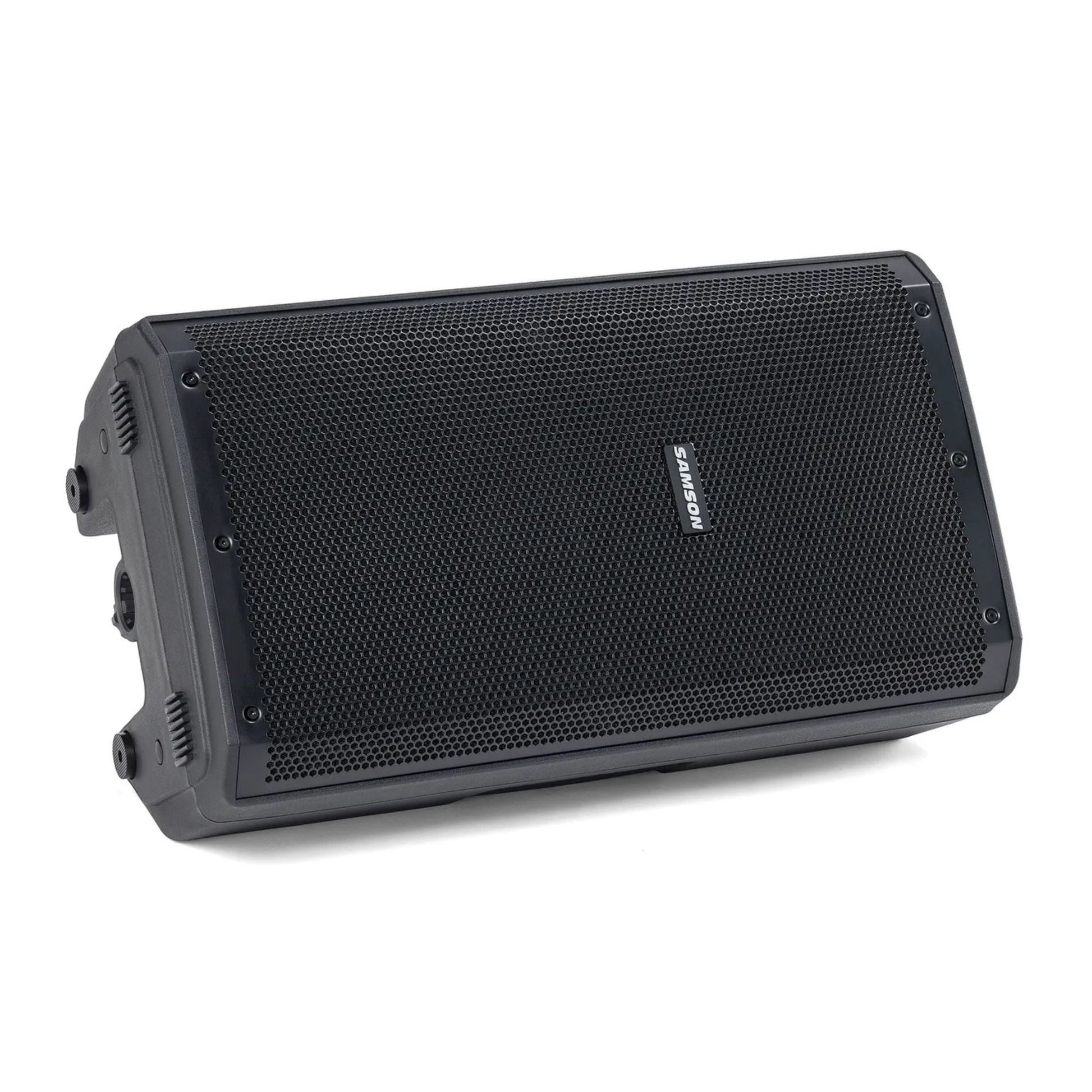

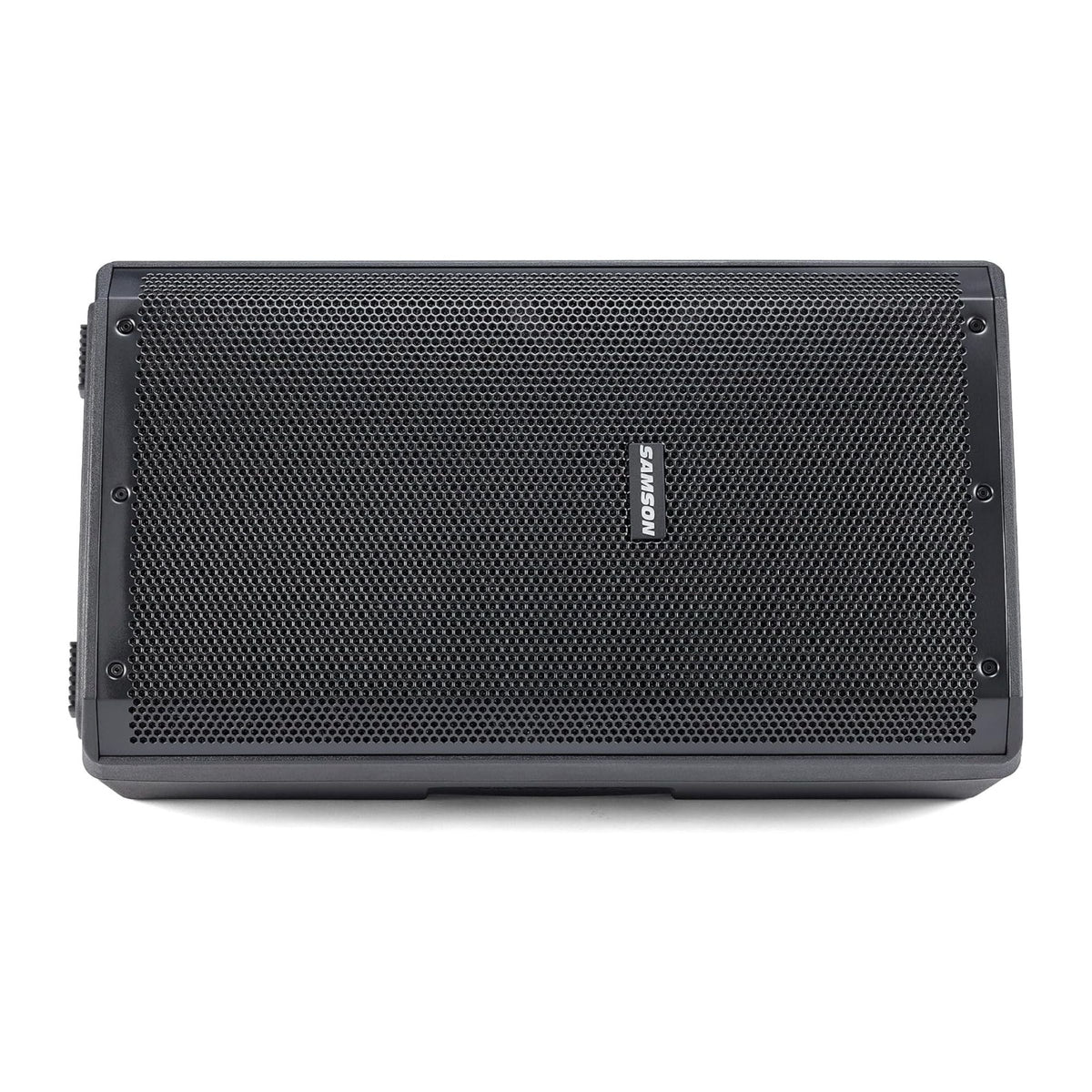

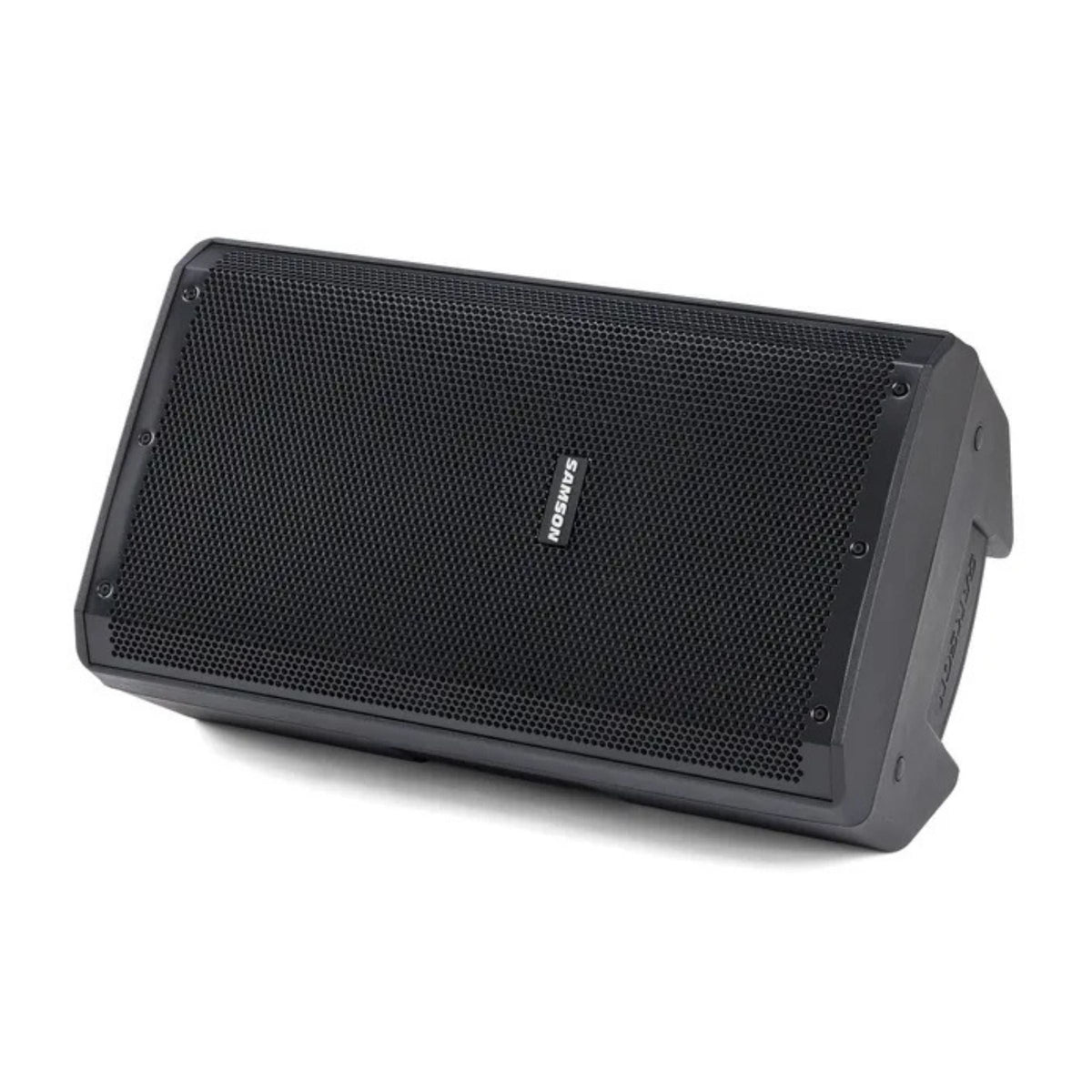

• Horizontal/Angled floor monitor positioning
• Full perforated metal grille protects all speaker components

SPECIFICATIONS

• Output Power: 400 Watts Peak /200 Watts RMS

• Max. SPL (1M): 115dB

• Frequency Response: 55Hz – 20KHz

• Low Frequency: 12” (305mm) Woofer, 2” (50.8mm) Voice Coil

• High Frequency: 1” (25.4mm), 1” (25.4mm) Voice Coil

• Crossover Frequency: 3kHz

• Crossover Type: 18dB/Oct

• Horn Coverage: 90°H x 60°V

• Inputs: Balanced XLR–1/4” Combo, USB XPD Wireless

• Output: Balanced XLR Line Output

• Contour Equalization: 100Hz & 12kHz Boost

• Electronic Protection: Thermal, Overload, Analog (Optical) Limiter, Compressor

• Enclosure: Polypropylene

• Grille: Full metal perforated

• Handles: Two side, one top

• Monitor Angle: 45°

• Mounting Method: 1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints

• Dimensions: 15” x 12.9” x 23.9” / 380mm x 327mm x 606.5mm

• Weight: 30.8lb / 14kg
