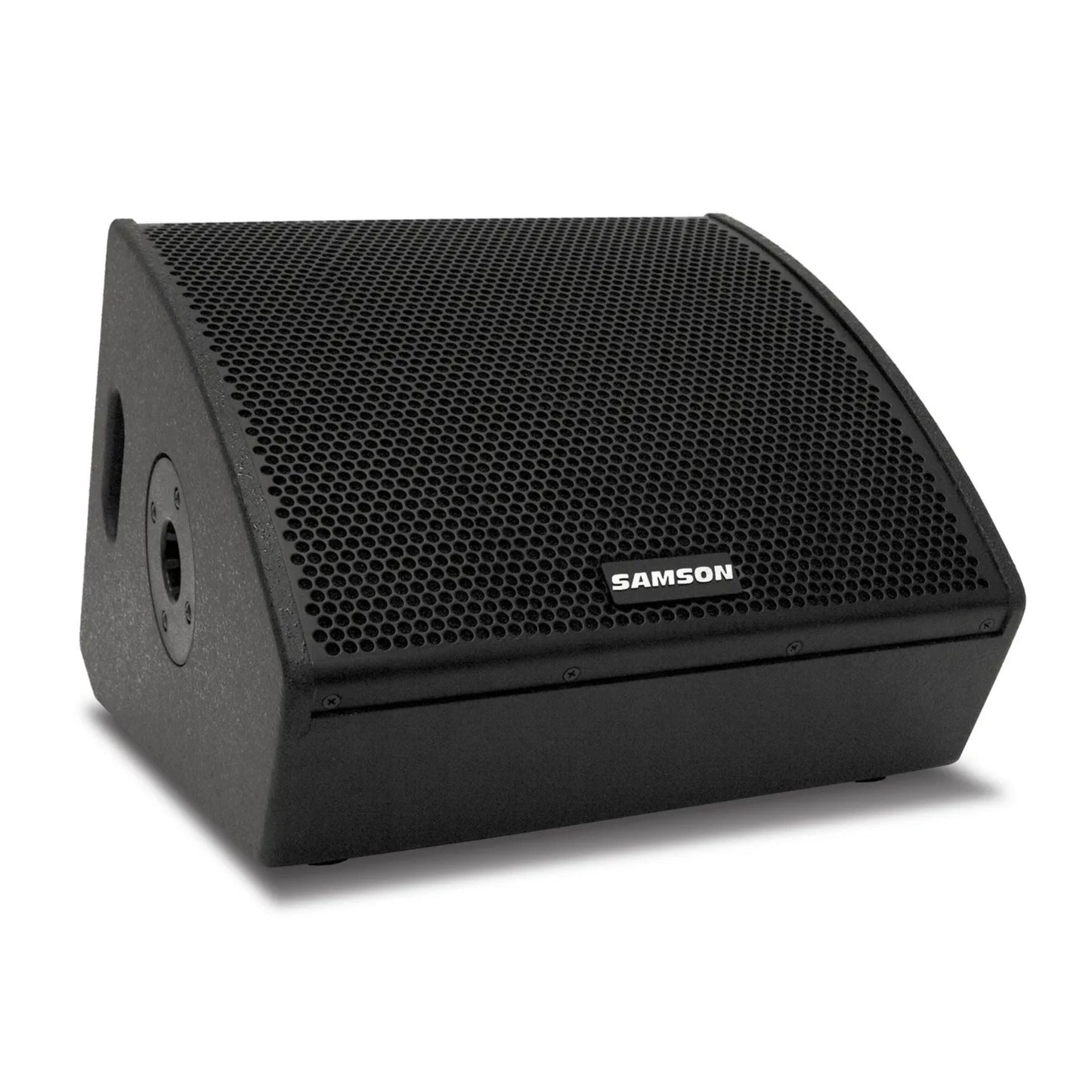

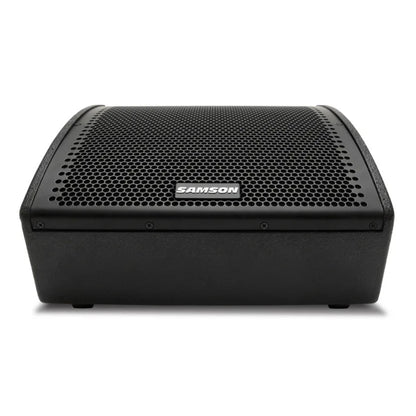

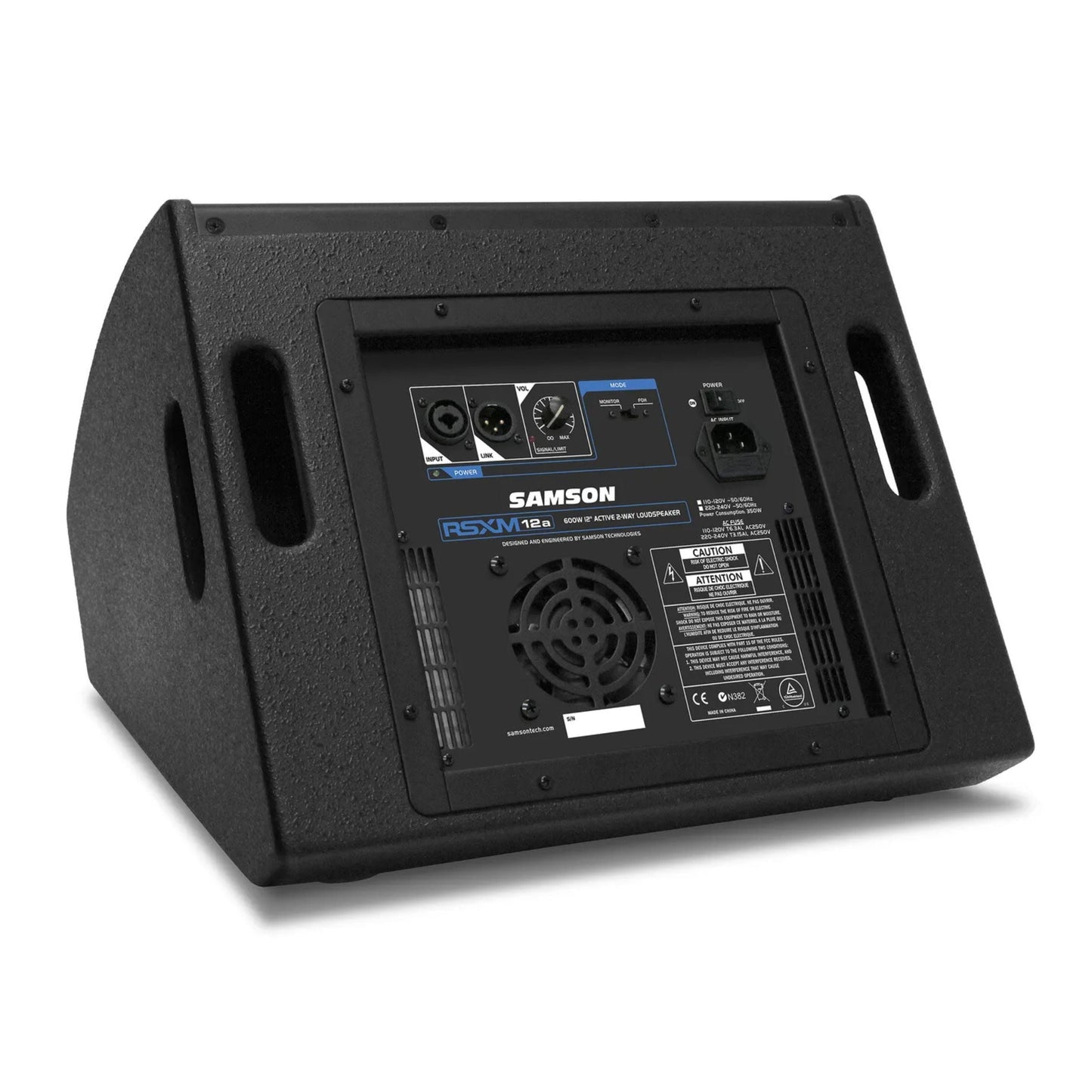

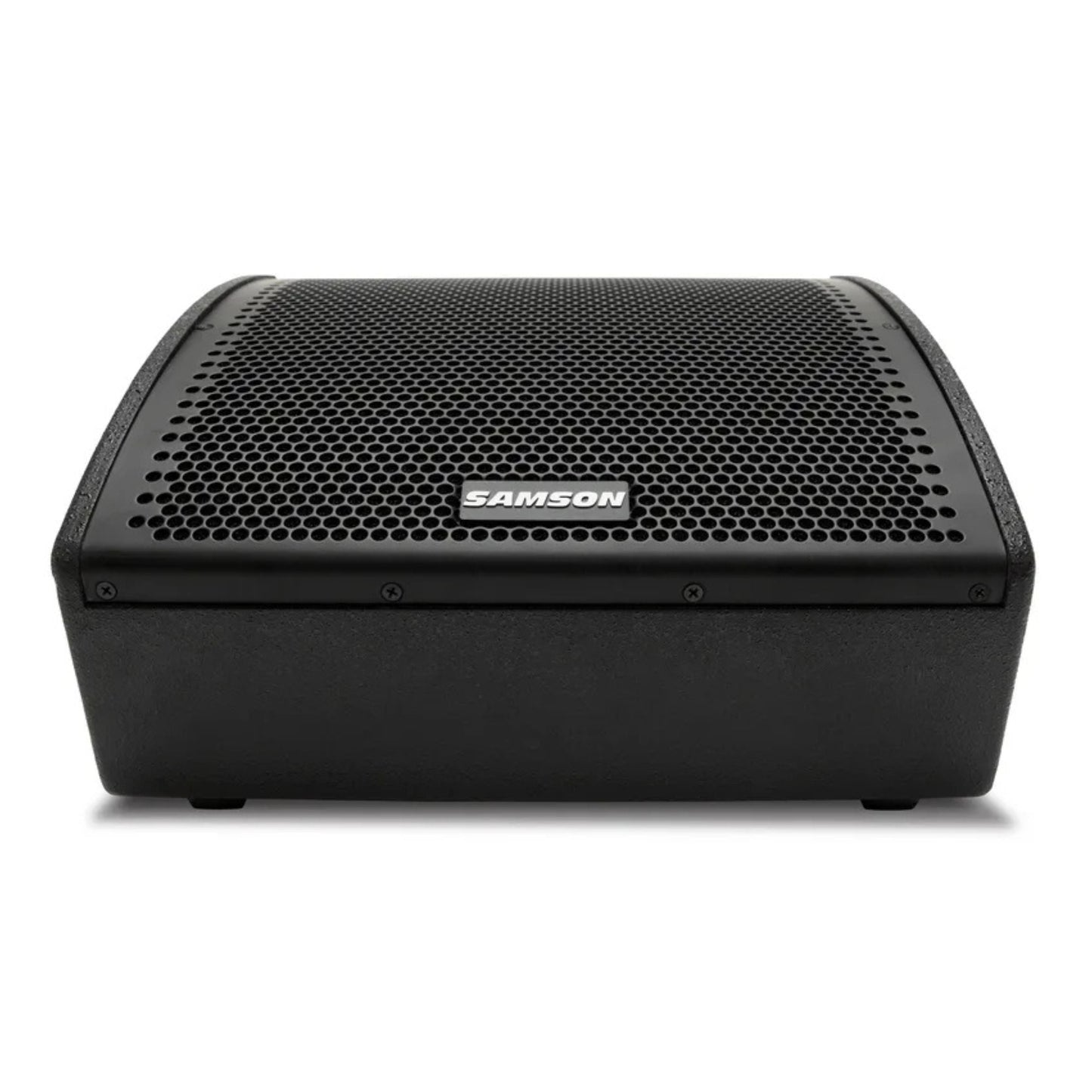

RSXM12A 12" Stage Monitor

The RSXM12A 12" 800-Watt Coaxial Powered 2-Way Active Stage Monitor offers touring musicians/DJs, front-of-house engineers, and live sound professionals exceptional monitoring versatility, ultra-efficient Class D power, and the durability of all-wood cabinet construction.

The RSXM12A produces 800 watts of Class D power through its 12" woofer and premium 1" horn-loaded tweeter. A compact, coaxial design gives the monitor amazing portability with impeccable sound. In addition, the RSXM12A features an integral 1 3/8" pole mount and a Monitor/FOH optimization switch for added flexibility.

Designed to bring professional performance to a variety of monitoring applications, including keyboards and electronic drums, the RSXM12A is also convenient for DJs who need a dedicated monitor while working in a compact booth. A single XLR-1/4" combo input is provided, along with an XLR link output for system expansion. In addition, the RSXM12A features a powder-coated steel grille and two integrated side carrying handles, making it durable yet highly portable for use on the road.

FEATURES

• Lightweight Class D 2-way active stage monitor
• 800 watts of output power
• All-wood cabinet construction
• Compact, coaxial design
• 12" low frequency driver
• 1" tweeter

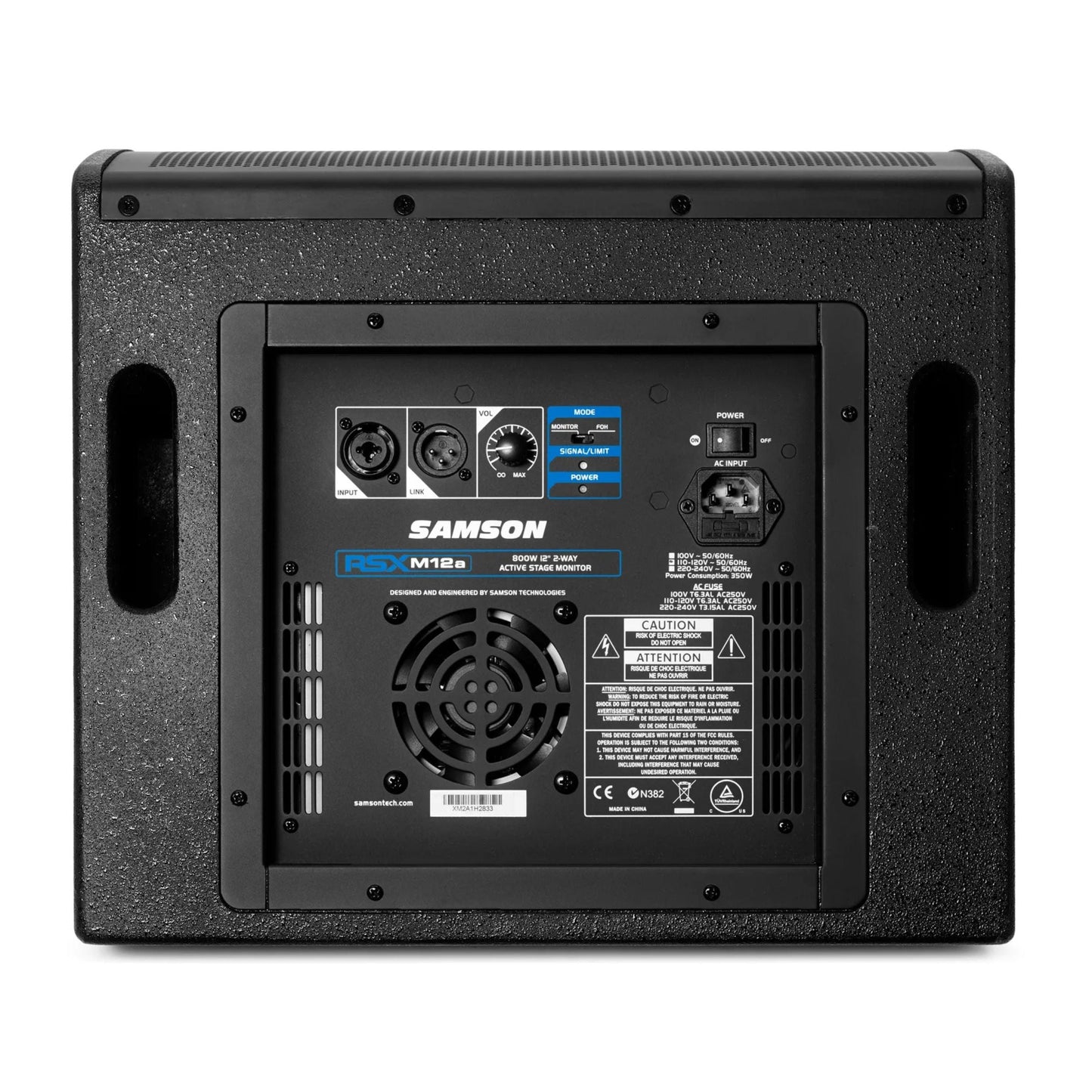

• XLR-1/4" combo input
• XLR Link output
• Dedicated Volume knob
• FOH/Monitor selector switch to optimize sound

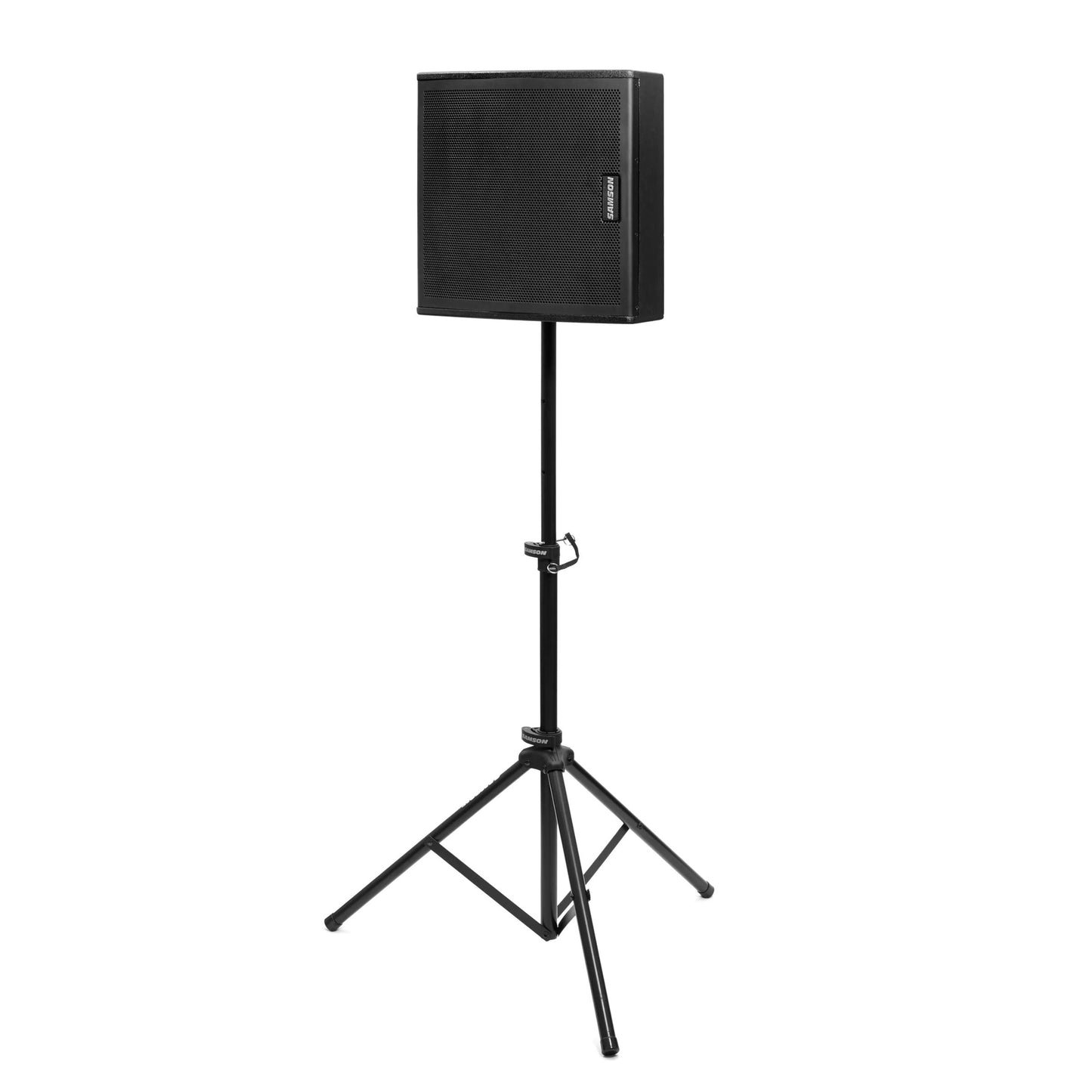

• 1 3/8" pole mount receptacle
• Integrated side carry handles
• Perforated steel grill protects all monitor components
• Durable black, textured paint finish

SPECIFICATIONS

• Low Frequency: RMS: 350W / Peak: 700W

• High Frequency: RMS: 50W / Peak: 100W

• Low Frequency: 12” (304 mm) woofer with 2” (51 mm) voice-coil

• High Frequency: 1” (25.4 mm) Driver with 1” (25.4 mm) voice-coil

• Frequency Response (-3 dB): 56 Hz to 20 kHz

• Maximum SPL (Peak Power): 126 dB SPL @ 1 m

• Coverage Angle (Horz. x Vert.): 70° x 70°

• Equalization Switch: Monitor, FOH (Front of House)

• Crossover Type: 12 dB/oct

• Crossover Frequency: 3.0 kHz

• Inputs: Balanced XLR & 1/4” Connectors

• Output: Balanced XLR Line Output

• Mounting Method: Integral 1 3∕8” Pole Mount Receptacle

• Dimensions: 15.47” x 15.39” x 14.03” / 393mm x 391mm x 356.4mm

• Weight: 31.81 lb / 14.43 kg
