Warm Audio
WA-2MPX Dual-Channel Tube Mic Preamp
WA-2MPX Dual-Channel Tube Mic Preamp
The WA-2MPX is an authentic reproduction of the most revered microphone tube preamp that pioneered the birth of rock ‘n’ roll & radio-ready hits. During the golden era of tape recording, the original 351-style tube preamps were the kings of studio tech delivering pure analog warmth; the signature sound in the signal chain of hit recordings for artists including Elvis Presley, Bing Crosby, Les Paul, Nat King Cole, and Roy Orbison.
The WA-2MPX preamps deliver the same sonic signature as their vintage inspiration, imparting high-headroom analog warmth that goes from ultra clean to rude and saturated. Each channel boasts a handwired circuit containing custom CineMag transformers and three tubes that, with the high-gain switch engaged, bring the WA-2MPX up to an incredible 90dB of gain. The WA-2MPX not only delivers the sound of a legendary tape-era tube preamp but one of the best values in an all-tube mic preamp on the market today.
FEATURES
- 90 dB, 300 v Dual-Channel Tube Microphone Preamp
- Selectable Tape Saturation Adds Harmonic Distortion & Natural Compression
- Engage High Gain Control For An Added 20db (From 70dB To 90 dB) Of Clean Gain For Low-Output Mics And Low-Volume Sources
- 48v Phantom Power & Polarity Switch
- Classic Warm Audio Tone Control That Alters The Input Transformer Impedance Adding Extra Analog Color
- 80Hz High-Pass Filter To Control Unruly Bass Frequencies
- 2kHz Low-Pass Filter To Focus Preamp Power & Warmth On Mids For Added Punch
- Inputs: XLR Mic, TS Instrument & TRS Line.
- Outputs: XLR / TRS Line Level
- VU Meter Level Indication
- Aluminum Faceplate, Steel Chassis, & Vintage Bakelite-Style Knobs
- Internal IEC 115v/230v Power Inlet
- Dual Chassis Depth: 8” | 20 cm

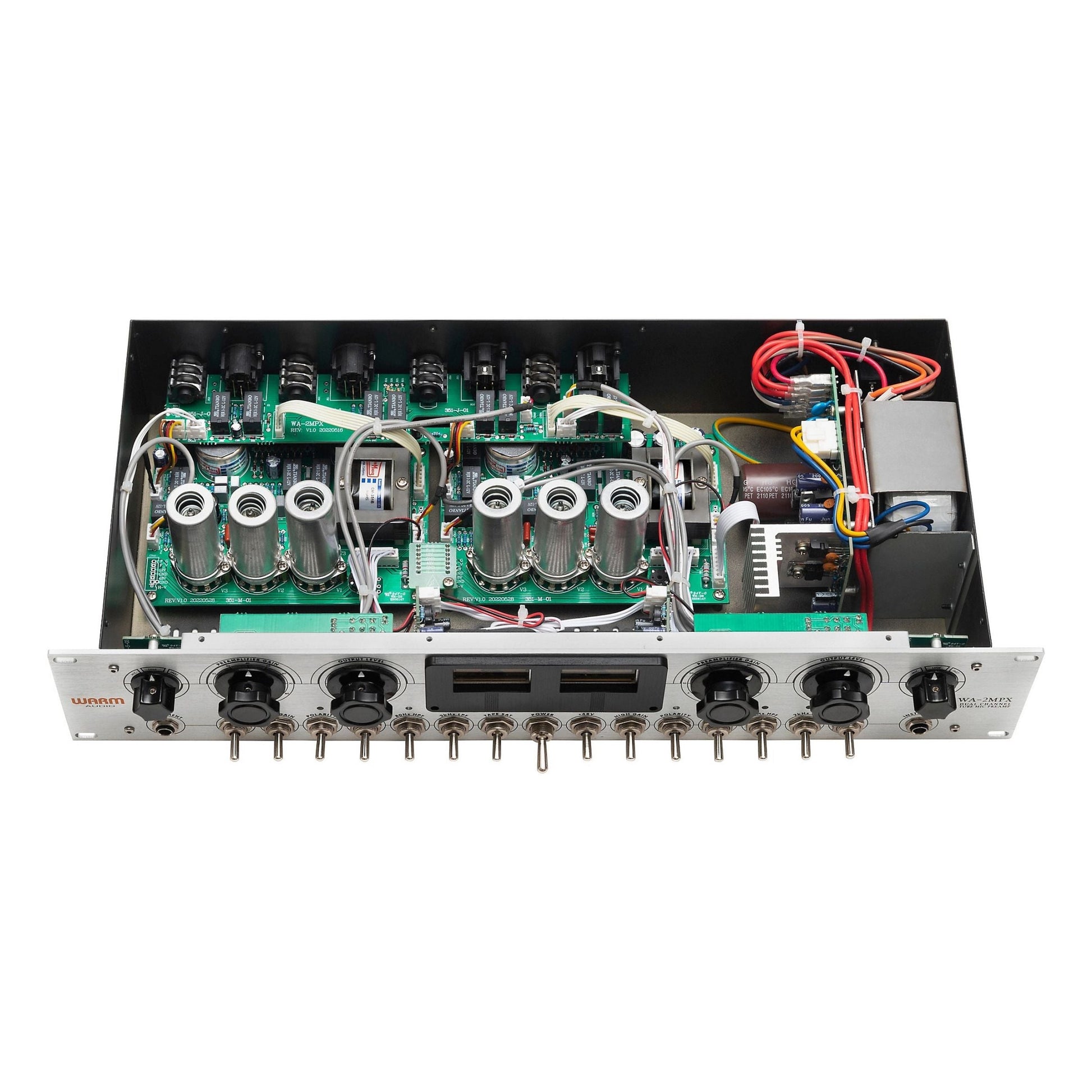

- Fully Discrete, Hand-Built Construction With 3 Tubes Per Channel For Ultimate Analog Tone
- Premium (2X) 12AX7 & (1X) 12AU7 Vacuum Tubes
- 90dB Of Analog Tube Gain Per Channel
- Custom-Wound, Large-Core CineMag USA Transformers
- Mic Input: 600Ω Transformer (6000Ω Rated)
- Mic Input With “Tone” Engaged: 150Ω Transformer (1500Ω Rated)
- 600Ω Output Attenuator
- Frequency Response: 20Hz-20kHz
- 5-Year Warranty
